2500mm Feeding Width Digital Corugated Non-plate Printer Press
~ ○ ~ ○ ~ ○ ~ ○ ~ ○ ~ ○ ~ Specifications ~ ○ ~ ○ ~ ○ ~ ○ ~ ○ ~ ○ ~

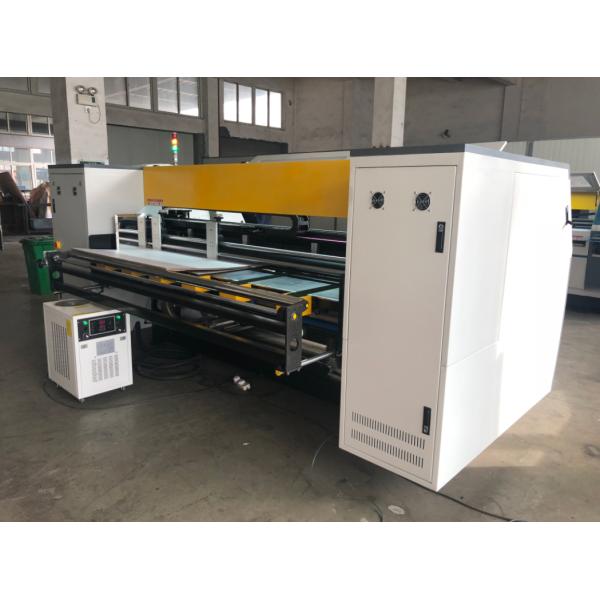

Digital Corrugated Printer
Model
ECOO-2302AF
Printhead Quantity
2 Pieces
Feeding Width
2500mm
Printing Area
2300mm*2000mm
Color Type
C, M, Y, K
Printhead Model
Ricoh GEN5
Temperature Control
Integrated heater and thermistor
Printhead Life
100 billion actuations per nozzle
Printing Efficiency
3 PASS the highest 25 m2/hour, 4 PASS the highest 20 m2/hour
Printing Resolution
≥ 180*300 dpi
Controlled Ink Dot Size
7~35pl
Jetting Frequency
30KHz
Corrugated Thickness
Between 3.5mm~12mm
Feeding Mode
Automatic feeding
Graphics Format Support
JPG, BMP, TIF
Printing Head
Corrosion-resistant industrial ink jet head
Control System
Digital-printing control system from LeiPeng intelligent technology
Ink-provide
Automatic two levels supply, fully enclosed ink supply channel
Print Head Cleaning System
Automatic negative pressure suction
Work Environment
3-45ºC Indoor temperature, Humidity 20-70%
Press Roll Method
Electrical control
Warranty
6 Months for the print head, 1 year for the machine
Operate System
Windo ws 7 system 64-bit operating system
Power Supply
≤ 1.7KW, AC 220V±10%, 50-60Hz
Machine Size
4000*2600*1700mm
Picking Size
4200*2000*1900mm
Net Weight
2300kg
| Digital Corrugated Printer | |
| Model | ECOO-2302AF |
| Printhead Quantity | 2 pieces |
| Feeding Width | 2500mm |
| Printing Area | 2300mm*2000mm |
| Color Type | C, M, Y, K |
| Printhead Model | Ricoh GEN5 |
| Temperature Control | Integrated heater and thermistor |
| Printhead Life | 100 billion actuations per nozzle |
| Printing Efficiency | 3 PASS the highest 25 m2/hour, 4 PASS the highest 20 m2/hour |
| Printing Resolution | ≥ 180*300 dpi |
| Controlled Ink Dot Size | 7~35pl |
| Jetting Frequency | 30KHz |
| Corrugated Thickness | Between 3.5mm~12mm |
| Feeding Mode | Automatic feeding |
| Graphics Format Support | JPG, BMP, TIF |
| Printing Head | Corrosion-resistant industrial ink jet head |
| Control System | Digital-printing control system from LeiPeng intelligent technology |
| Ink-provide | Automatic two levels supply, fully enclosed ink supply channel |
| Print Head Cleaning System | Automatic negative pressure suction |
| Work Environment | 3-45ºC Indoor temperature, Humidity 20-70% |
| Press Roll Method | Electrical control |
| Warranty | 6 Months for the print head, 1 year for the machine |
| Operate System | Windo ws 7 system 64-bit operating system |
| Power Supply | ≤ 1.7KW, AC 220V±10%, 50-60Hz |
| Machine Size | 4000*2600*1700mm |
| Picking Size | 4200*2000*1900mm |
| Net Weight | 2300kg |
MACHINE CONFIGURATION LIST:
| Product Name | Main Parts | Specification | Quantity | Manufacturers | Producing Area |
| Printing System | Printing head | Epson | 2 | Ricoh | Japan |
| Color software | 1 | Ultriaprint | China | ||

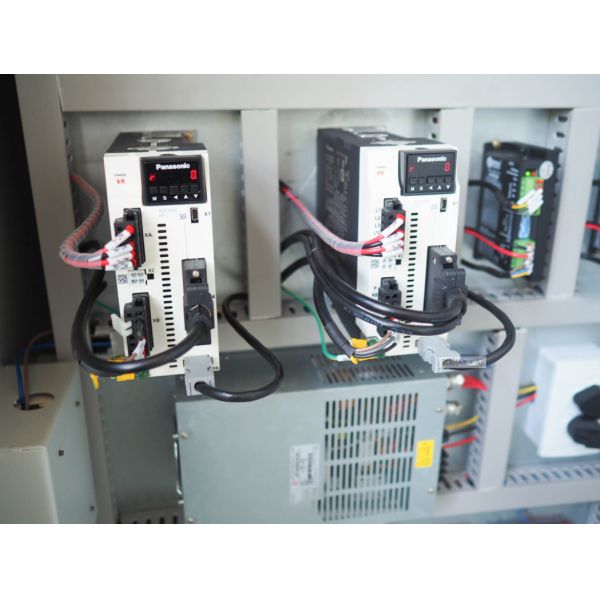

| Moving Parts | X Servo motor | 0.75KW | 1 | PANASONI C | Japan |
| Feeding servo motor | 0.75KW | 1 | PANASONI C | Japan | |
| Z Servo motor | 86 series | 1 | MOONS | China | |
| Transmission Part | X Guide rail | 20 | 2 | WON/ABBA | Korea/Japan |
| Control System | PLC | XC3 series | 1 | Xinje | China |
| Touch panel | 1 | PaneMaster | China | ||
| Computer | Lenov o | China | |||
| Printing software | 1 | Sinlopon | China | ||
| UV Light Part | UV light | 2 | China | ||
| UV Chiller | 3000W | 1 | China |

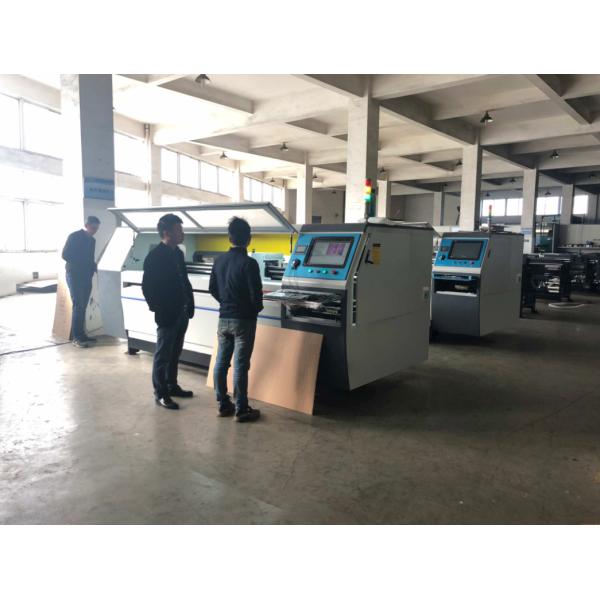

~ ○ ~ ○ ~ ○ ~ ○ ~ ○ ~ ○ ~ Producing And Packaging ~ ○ ~ ○ ~ ○ ~ ○ ~ ○ ~ ○ ~
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
~ ○ ~ ○ ~ ○ ~ ○ ~ ○ ~ ○ ~ Certifications ~ ○ ~ ○ ~ ○ ~ ○ ~ ○ ~ ○ ~
~ ○ ~ ○ ~ ○ ~ ○ ~ ○ ~ ○ ~ FAQ ~ ○ ~ ○ ~ ○ ~ ○ ~ ○ ~ ○ ~
Q1: What are your main products ?
You can get the equipment and consumables all in one and no worry about the after-sales service from our company. |
Q2: Where is your factory ?
|
Q3: What is your warranty for the CTPs ?
|
Q4: Can you also supply the Workflow and RIP ?
|
Q5: What about the installation and after-sales technician support ?
These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction. |
|
