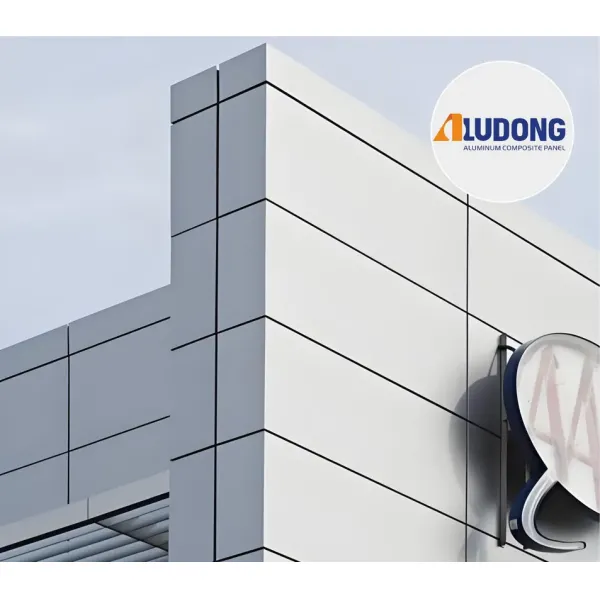

4mm PVDF Aluminum Composite Panel for exterior facade,building cladding

Company Profile

HENAN JIXIANG INDUSTRY CO.,LTD is a leading Chinese manufacturer of aluminum and composite materials with over 20 years of expertise. Certified with ISO 9001, CE, and SGS, we export to 100+ countries, offering reliable materials by R&D innovation and strict quality control.

Henan Jixiang Industry Co., Ltd; Henan Aludong Decorative Materials Co.,Ltd is located in Zhengzhou City,Henan Province, Which a professional enterprise manufacturing high and new-tech aluminum composite products,which is one of the earliest and scaled manufacturers of aluminum composite, coated aluminum coils, aluminum solid panel in China.Our company possesses16 production lines and 6 coating lines for aluminum composite panels whose annual output is 5800000 square meters.In addition, our company has passed ISO9001 International Quality Management System Certification, ISO14000 Environment Management System Certification, OHSAS18000 Occupation Health Safety Management System Certification, and CTC Product Quality Certification, and won several national patents.

Specification

DIMENSIONAL STANDARD:

Standard Size: 1220*2440mm

Optional width: 1000/1020/1050/1250/1500/1550/1570mm

Optinal lenghth: as requests

Standard Thickness: 3/4mm

Optinal Thickness: 2/2.5/5/6/7/8mm

Dimensional Tolerance:

Panel width: +-2mm

Panel length: +-3mm

Panel thickness: +-0.2mm

Panel diagonal: <5mm

Aluminum sheet thickness: +-0.02mm

ALUDONG ACP APPLICATION:

•Outdoor advertising

•Signage
•Store Poster
•Supermarket poster
•Decorative mural painting
•Exhibition
•Partition
•Outdoor signage - Company sign boards, small pylons,wall advertising •board
•Exhibition stands / wall panels / ceiling construction
•POS applications
•Retail interior furnishings
•Digital Printing
•The product colour could be changed by vinyl application / spray paint

SOLID & METALLIC

WOODEN & MARBLE

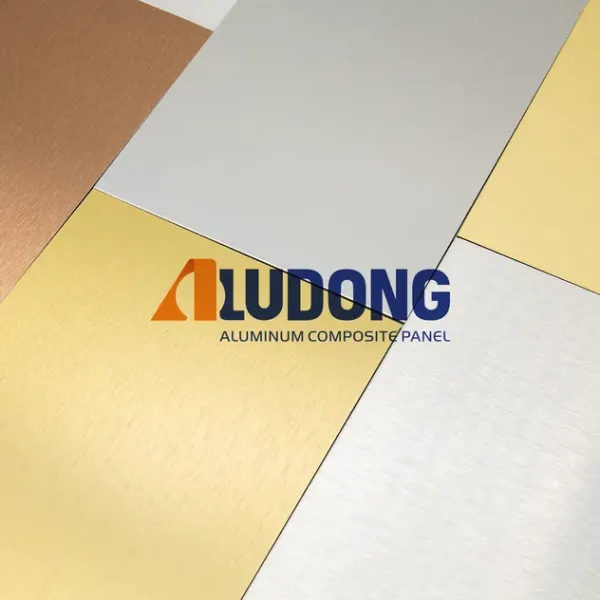

BRUSHED

ALUDONG ACP Characteristics

Products features:

•Light weight

•Excellent curve and bend strength
•Choice of rich colors and finishes
•Flat surface and consistent colors
•Easy processing and installation
•Fine impact resistance
•Exceptional weather resistance
•Easy maintenance
•Fire reistanct
•Printable surface as sign materials

•Customized size avaliable

Specifications(Custom configurations available upon request.)

WIDTH	PE	PVDF	ANODIZED MIRROR
1000-1220mm	0.05-0.50mm	0.21-0.50mm	0.30-0.50
1500-1570mm	0.15-0.50mm	0.21-0.50mm	/

ALUDONG PVDF ALUMINUM COMPOSITE PANEL TECHNICAL DATA

Description	Test standard	PVDF
Coating Thickness (μm)	Polyester paint >=25μm	26μm
Coating flexibility (T-bend)	Polyester paint ≤ 3T	≤ 2T
Color different	ΔE<=2.0 (follow color sample)	ΔE<=2.0
Pencil hardness	>=HB	>=2H
Chemical resistance	5%HCI or 5%NaOH test in 48 hours -No change	No change
Coating adhesion	>=1grade for 10810mm2 gridding test	1grade
Resist solvent	100 times without change	No change
Boiling water resistance	2 hours without change	No change
Peeling strength/stripping strength	Average >=5N/mm of 180oc peel off for panel with 0.30mm alu.skin	5N/mm
Impact test for paint	50KG.cm impact-paint no split for panel	No split
Abrasion resistance (L/Mi)	NIL	NIL
Temperature resistance	-40ºC to +80ºC temperature without change of color differenceand paint peel off , peeling strength average dropprate<=10%	Change of glossy only, no paint Peel off
Coefficient of linear Thermal Expansion	100ºC temperature difference	2.4mm/n
Detergent resistance (3%)	ASTM D2248	No change
Humidity Resistance	ASTM D2247 (3000hrs,100%RH,100°F)	No change
Salt spray resistance	ASTM B117 (3000hrs,5% salt)	No change
Resistance to Staining	600h radiate in 800W/M2 in humidity condition,glossiness deviation less grade 2,color difference <=4.0	No change

After Sales Service

Standard Warranty: 10 days for outter looks after upload goods, 6 months for inner quality

Extended Warranty: Optional coverage up to 24 months.

Global Support: 24/7 technical assistance and spare parts supply.

Training: On-site or remote operation/maintenance training.

Why Choose Us?

Other Products

OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support

Project solutions

Large Produdction capacity

ZWM brand / ALUDONG brand

Aluminum Honeycomb Panel

Stainless Steel Composite Panel

Coated Aluminum Coils

Solid Aluminum Panel

FAQ

Q: What's the lead time for orders?
A: Standard models ship in 15–20days; customized units require 20–25days.

Q: Do you have waranty for the materials?
A: Yes, PE coat: 3-5 years; PVDF: 10-15 years for exterior.

Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.

Q: Can I request a customized size and brand?
A: Absolutely! We offer customized size and branded service.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.

Our company

Henan Jixiang Industry Co., Ltd.
Address: Room 1305A, South Tower of Green Center, Intersection of South Dongfeng Road and Chuangye Road, Zhengzhou Pilot Free Trade Zone, Zhengzhou City, Henan Province, P.R.China
The company boasts superior nationwide logistics and unparalleled geographical advantages.
Covering a land area of around 639 acres with a construction area of 230,751 square meters, we operate one of China’s largest production bases for decorative building materials. As a member unit of China Building Materials Industry Association, we are a large joint-stock enterprise specializing in the manufacturing of aluminum composite panels (ACP) and aluminum veneers. We possess decades of production experience, robust technical capacity, complete sets of advanced production lines, as well as precise testing equipment for strict full-process quality control.
Henan Jixiang Industry Co., Ltd. is an affiliated enterprise under Shanghai Jixiang Building Materials Group Co., Ltd. Other subsidiaries of the group include Zhengzhou Jinmu Decoration Materials Co., Ltd., Zhejiang Liantai Instrument Co., Ltd., Yueqing Zhongtian Plastic Co., Ltd., Yueqing Zhongtian Instrument Co., Ltd. and Shanghai Long Coating Co., Ltd.

Our factory

Scale: We have 10 composite lines, 6 coating lines and more than 400 employees, 8000000m² annual capacity of aluminum composite panels.
Experience: Founded in 1999,we have rich production experience and advantages to make Jixiang a well-known China brand.
Competitive price: Best price could be offered as we have own alu coil factory.
Quality: Our rigid quality control passes CE,SGS,RoHS,ISO, etc.
Lead time: Our large-scale production and expertise allow us to deliver quality-guaranteed orders with fast lead times.
OEM service: Multiple specifications and colors for your choice, and we also have superior ability of OEM customization.

Our certification

     SGS A2 Fire Certificate                    SGS B1 Fire Certificate                     Fire Test Report for ACP

             CE Certificate                            ISO9001 QMS Certificate                   ISO14001 EMS Certificate

Our project

For more information, please visit our website: www.henanjixiang.com

We sincerely welcome friends from home and abroad to cooperate with us!

Should you need to purchase aluminum composite panels, please contact us for our most competitive offer!
