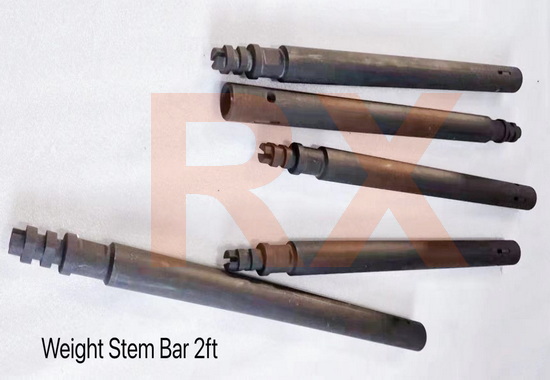

The Ordinary Weight Stem Bar 2ft Wireline Tool String
I. Overview:
The ordinary weight stem bar is used to provide the weight required for the operation, so that
the tool string can overcome the pressure acting on its section and
the resistance of the packing in the packing box and fall.
The ordinary weight stem bar is cylindrical in shape, with a male buckle and a fishing neck at
the upper end, and a female buckle at the lower end.The weight stem
bars have different lengths and sizes.
II. Common technical parameters:
| Stem O.D | Fishneck O.D. | Connections | Length |
| 1.25" | 1.187" | 15/16UN | 24" |
| 1.25" | 1.187" | 15/16UN | 36" |
| 1.25" | 1.187" | 15/16UN | 60" |
| 1.5" | 1.375" | 15/16UN | 24" |
| 1.5" | 1.375" | 15/16UN | 36" |
| 1.5" | 1.375" | 15/16UN | 60" |
| 2.125" | 1.75" | 1-1/16UN | 24" |
| 2.125" | 1.75" | 1-1/16UN | 36" |
| 2.125" | 1.75" | 1-1/16UN | 60" |
| 2.5" | 2.313" | 1-9/16UN | 24" |
| 2.5" | 2.313" | 1-9/16UN | 36" |
| 2.5" | 2.313" | 1-9/16UN | 60" |
III. Structural features and use:
The ordinary weight stem bar has a simple structure and is easy to
use. It is the most commonly used weighting bar. When using it, you
can choose an appropriate weight for work.
IV, matters needing attention:
1. Ordinary weight stem are the simplest and most commonly used
weighting rods. Both ends of the thread must be connected firmly
during use, and the appropriate weighting rod must be selected
according to the actual situation during operation.
2. After using the weighting bar, maintain it in time to prolong
the service life of the tool.
Tools can be manufactured to any size required.
Welcome to contact us at any time.
|
