| Categories | Foil Stamping Die Cutting Machine |
|---|---|
| Brand Name: | ECOOGRAPHIX |
| Model Number: | AEM1050 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1SET |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500SETS |
| Delivery Time: | about 20days |
| Packaging Details: | Standard export packing |
| Max Sheet size: | 1050x750(mm) |
| Min sheet size(x)x(y): | 400x370(mm) |
| Speed: | 7500S/H |
| Application: | plastic film/sheet, paper sheet, Corrugated Board, Paperboard |
| Type: | Automatic Die Cutter with Blanking |
| Motor Power: | 4.2KW |
| Condition: | New |
| Warranty: | One Year |
| Package dimension: | 5700x2100x2300(mm) |
| Company Info. |
| Hangzhou Ecoographix Digital Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
B1 Paper Sheet Die Cutting machine with Blanking and Stripping
EcooGraphix AEM1050 is the ideal equipment for die cutting and creasing all kinds of paperboard, it is the most preeminent handfed die cutting machine to do some simple creasing for sample.
As the longest life product , our semi automatic die cutter has been upgraded for many times, but we keep the perfect surface and make the performance to the best.
This series of products suitable for the strip process after die cutting, Save lots of labor improve the quality of products, increase the efficiency of company
Features
1. It adopts servo motor, Taiwan double guide rail and bail screw which makes accuracy less than 0.02mm.The latest hydraulic system is equipped with inserted motor and oil temperature cooling fan (power 3.75kw).
2. The complete machine is equipped with PLC, and with a touch screen interface in operation.
3. Applied for many die cut products such as labels, hang tags,
business cards, gift boxes, food boxes,
paper cups and other die cutting products in paper or plastic, PU
leather.
4. Automatically taking out with manipulator arm to stack product
onto delivery belt.
5. Automatic lubrication system for machine better maintenance.
6. Different shapes can be custom-made as customer requirement.
Specification
| Machine Model | AEM-1050Q Automatic Die Cutting Machine | |
| Machine configuration | Feeder section | √ |
| Die Cutting section | √ | |
| Heating plate | OPTIONAL | |
| Stripping and Blanking section | √ | |
| Sheet delivery section | √ | |
| Max. Sheet Size | 1050×750 mm | |
| Min. Sheet Size | 400×370 mm | |
| Max. Die-Cutting Size | 1040×730 mm | |
| Inner Chase Size | 1144×760mm | |
| Die Cutting Plate Size | 1080×738mm | |
| Feeding Pile Height | 1550mm | |
| Delivery Pile Height | 1400mm | |
| Cutting Rule Height | 23.8mm | |
| Cutting Plate Thickness | 5mm(3+2 or 4+1 is optional) | |
| Stock Range | Paperboard:0.1～2 mm | |
| Corrugated paper:＜4 mm | ||
| Plastic sheet: 0.2～1 mm(heating plate is optional) | ||
| Die-Cutting Accuracy | ≤±0.1 mm | |
| Max. Die-Cutting Pressure | 320 T | |
| Max. Machine Speed | 7500 S/H | |
| Min Gripper Margin | 7mm | |
| Air Supply | 0.6-0.7Mpa, 0.36m³/Min | |
| Power Requirement | 3 phases 380V 50HZ | |
| Main Motor Power | 11 kw | |
| Heating area power(if for plastic cutting, optional) | 24 KW (12 heating zone, each zone is 2kw) | |
| Total Power(without heating) | 17.8KW | |

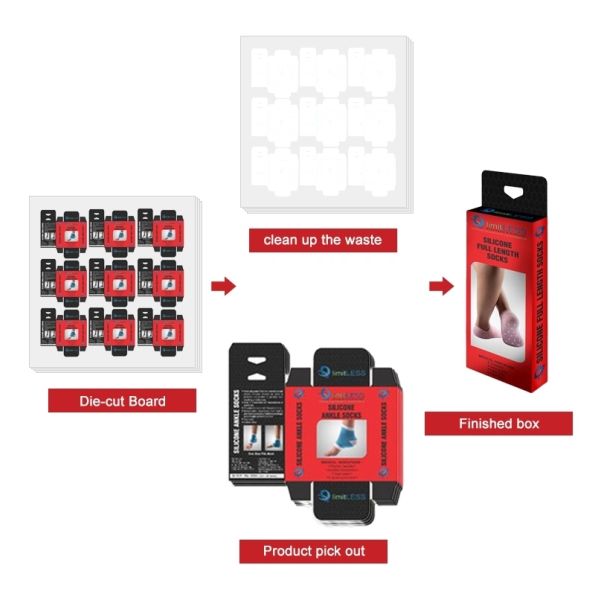

Application and Samples:
4.About our factory
EcooGraphix TD790 is produced by the leading manufacture in China ,which has a long history more than 90years. It is the first factory to produce and supply the Die Cutting ,Foil Stamping and Automatic Gluing machines .There are thousands of Die Cutting Machines installed worldwide. And two units EcooGraphix TDS790 were installed in Hungary in 2017.
Quality Control
Professional control department which is responsible for all the machines.
Full checking list including mechanical and electrical detection on the machine.
Strict standard for registration and over 24 hours non-stop running on each machine.
Follow the policy of ‘One person responsible for one machine’,‘Claim responsibility if machine has assemble problem.
Service
All technicians have over 10-20 years experience.
Rich experience in installation, repairing and maintenance overseas.
After-sales staff Whatsapp/Wechat on line 24/7.
Guarantee to provide after-sales service for any machine for whole using life.
|
