Double Pattern Beams Textile Warping Machine Manufacturer 75" 132 Inch

Categories	Textile Warping Machine
Place of Origin:	Jiangsu, China
Brand Name:	zytt
Certification:	CE
Packaging Details:	Wooden package
Supply Ability:	100 Set/Sets per Month
Price:	$17,500.00/sets 1-1 sets
MOQ:	1 set
Delivery Time:	30 days
Model Number:	double
Applicable Industries:	Manufacturing Plant
Showroom Location:	India
Video outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	New Product 2022
Warranty of core components:	1 Year
Core Components:	PLC, Motor
Condition:	New
Type:	warping
Warranty:	1 Year
Key Selling Points:	Automatic
Machine type:	Warping Machine
Speed:	0-300(n/min)
Function:	Yarn
Model:	double
Service:	Support
After Warranty Service:	Video technical support
Port:	Shanghai

Contact Now

Add to Cart

Company Info.

Wuxi Zhongyin Textile Tech. Co., Ltd

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

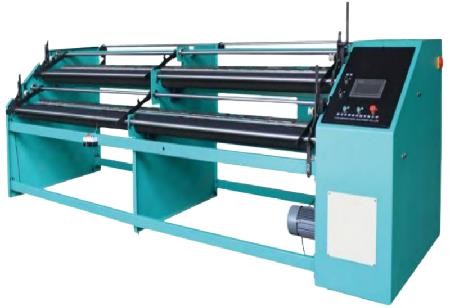

Double Pattern Beams Textile Warping Machine Manufacturer 75" 132 Inch

Double Pattern Beams Warping Machine

Product Introduction

Double pattern beams servo-controlled warping machine is equipped with computer and man-machine interface servo controlling units and used for warping technology for pattern beam of Raschel multi-shuttle warping machine. It is suitable for warping polyamide and polyester filament, low elastic polyester fiber, viscose and short-fiber yarn such as cotton yarn.

Warping speed	0-300(n/min)
Horizontal moving range of warping yarn	15-150(mm)
Warper beam length	75"-132" inch
Warper creel capacity	120 cones(or at customer's options)

Product Features
1.The machine adopts advanced servo driving controlling system to drive big ball bearing pole to arrange the yarn accurately.
2.New man-machine interface can manage the techniques data operate easily.
3.The machine can record the information of single and double layers and control synchronically.
4.The machine has protection function when power-failure and it can break quickly.
5.Horizontal moving range of the warping yarn becomes less automatically when the diameter of beam becomes more. It forms a taper and looks beautiful
