| Categories | CATV Coaxial Cable |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Model Number: | PK75 |
| Certification: | UL, ETL, CE, RoHS |
| Place of Origin: | China |
| MOQ: | 30 KM |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Delivery Time: | Normally 15 working days |
| Packaging Details: | 500M, 1000M, Wooden Drum, Pallet |
| Inner Conductor: | 0.72 mm Cu |
| Dielectric: | 0.18"/4.60mm FPE |
| Shield: | 96/ 0.15mm CCAM |
| Jacket: | 7.0mm PE black |
| Jacket Thickness: | 0.90mm |
| Company Info. |
| HANGZHOU ZION COMMUNICATION CO., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
75 Ohm CATV coaxial Cable NO.7100385 | |||
| Construction Parameters: | |||
| Inner Conductor | 0.72 mm Cu | ||
| Dielectric | 0.18"/4.60mm FPE | ||
| Shield | 96/ 0.15mm CCAM | ||
| Jacket | 7.0mm PE black | ||
| Jacket Thickness | 0.90mm | ||
| Application | For Use in Longer CATV Run Lengths | ||
| Electrical Characteristics: | |||
| Inner Conductor Resistance | |||
| Capacitance | 54 ±3 pF/m | ||
| Impedance | 75 ± 3 Ω | ||
| Return loss | between 5 and 1000MHz: > 22dB | ||
| Velocity of Propagation | 0.82 | ||
| Sparker Test (VAC) | 4 | ||
| Mechanical and Envrionmental Properties | |||
| Cable bend radius | 10 times the cable diameter | ||
| Operating Temp Range | |||
| Cable diamensions | 6.8±0.20mm PVC | ||

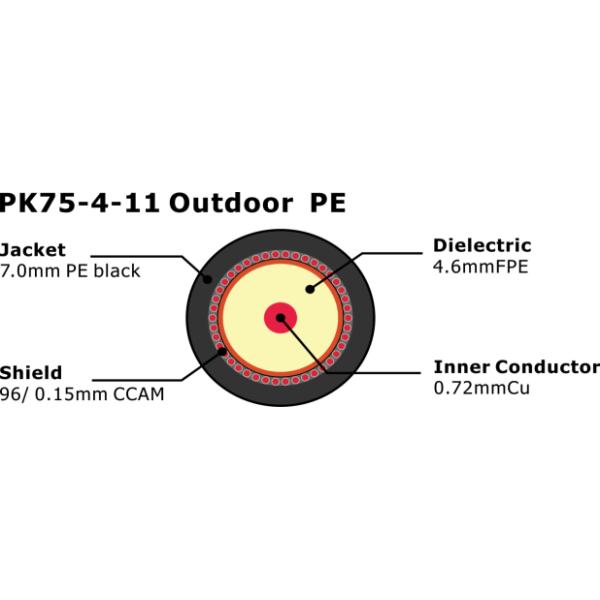

| Cross Section | |||
 | |||
| Attenuation(20℃): | |||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | ||
| 10 | |||
| 50 | |||
| 220 | |||
| 470 | |||
| 862 | |||
| 1000 | |||
| 1350 | |||
| 1750 | |||
| 2150 | |||
| 2400 | |||
| 3000 | |||
| Order Informations: | |||
| Marking | HELLOSIGNAL PK75-4-11 Outdoor PE CATV COAXIAL CABLE 7100385×××M/FT | ||
| Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | ||
| Delivery time | Normally 25 days after received the deposit. | ||
| Brand | HELLOSIGNAL® OR OEM | ||
|
