1 Product introduction

The product model is ANTI-100. It serves the reliable navigation of small UAVs and other fields, protects the platform from all kinds of unintentional interference and malicious attacks, and greatly improves the information security of PNT.

2 Product features

▶ It has the function of anti-deception.

▶ It has the function of jamming power detection, which is convenient for jamming calibration and joint test of the whole machine.

▶ Support secondary development, further spectrum monitoring, histogram analysis and other processing.

▶ Support 4-array element single-frequency anti-jamming, with working frequency points B1, L1 and E1.

▶ Built-in navigation and positioning module outputs positioning information according to NEMA0183 protocol.

3 Key indicators

▶ Anti-interference ability:

² Unidirectional interference: better than 85dBc

² Multi-directional interference: better than 65dBc

▶ Type of interference:

² Decoy jamming;

² Band-limited white Gaussian interference, spread spectrum matched spectrum interference;

² Pulse jamming and sweep jamming;

² Mixed interference;

▶ Anti-jamming airspace: azimuth: 0 ° ~ 360, elevation: -90 ° ~ 90 °

▶ Dimension: (66 ± 0.5) mm × (66 ± 0.5) mm × (22 ± 0.5) mm

▶ Power consumption: 7 W (normal temperature, including positioning module)

▶ Weight: < 150g

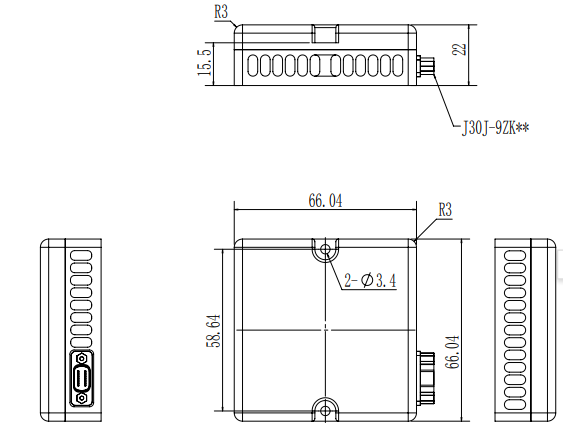

4 Physical dimensions and installation

66mm x 66mm x22mm Installation holes shall be reserved at the bottom of the complete machine. And is fixed to that surface of the platform carrier through two through holes.

When installing, pay attention to the direction of the radome. If it is placed on the platform carrier, the wave-transparent material shall be used above the product.
