| Categories | Industrial Steel Grating |
|---|---|
| Brand Name: | Zhuote |
| Model Number: | 305/30/100 |
| Certification: | SGS&ISO 9001, SGS, ISO9001 |
| Place of Origin: | Hebei |
| MOQ: | 70 piece |
| Price: | Can discuss |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 Square meters/day |
| Delivery Time: | 10 work days |
| Packaging Details: | Steel belt packaging |
| Shape: | Beams, square, various, as your request, fish-eye |
| Grating size: | 3'x20', 1000x1000mm, 3x30', drainage grating size is based on customer's requirement, 1000x6000mm and all |
| Cross bar pitch: | 50, 40, 100mm |
| Material: | Steel, Q235, q235 carbon steel, low carbon steel, stainless steel galvanized stee |
| Application: | Floor, Walkway, Industrial Platform, bridge, Trench Drains |
| Type: | Plain Bar Grating, Serrated Bar Grating, Plain, serrated, Flat |
| Company Info. |
| Hebei Zhuote wire mesh products Co., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

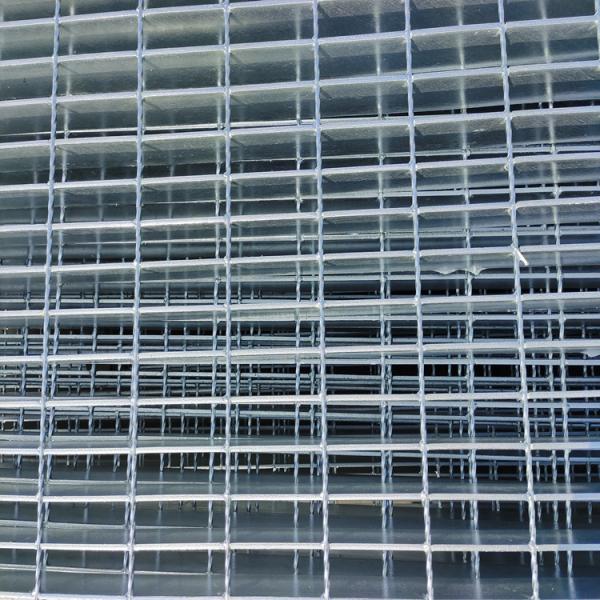

Industrial building supplies galvanized machine welding steel grating
Steel bar grating with high strength and firm structure is made up of carbon steel, aluminum steel, or stainless steel. According to the manufacturing methods, it can be divided into four types: welded, press-locked, swage-locked, and riveted gratings. According to the surface shapes, it can be divided into smooth and serrated gratings. With various styles and sizes for choice, steel gratings are widely used in everyday life, such as stair treads, walkways, platforms, floors, various covers, wheeled equipment, security screens, heavy-duty constructions, and so on.
Platform steel grid plate is made of flat steel in accordance with a certain distance and cross bar arrangement, and welded into a kind of steel products with a square grid in the middle, mainly used to do drain cover plate, steel structure platform plate,steel ladder step plate.The bar is generally made of twisted square steel.
Platform hot dip galvanized steel grid plate is generally made of
carbon steel, hot dip galvanized surface, can play a role in
preventing oxidation.It can also be made of stainless steel.Hot dip
galvanized steel grid has ventilation, lighting, heat
dissipation, anti-skid, explosion-proof and other properties.
Surface Treatment of hot dip galvanized steel grating
Installation of hot dip galvanized steel grating
1>The shape of bearing bar: Plain type (may be omitted in the symbol of steel grating), Serrated type and I-Shape type.
2>Bearing bar pitches:12.5, 15, 20, 30, 30.16, 32.5, 34.3, 40,
60mm, of which 30mm & 40mmare recommended.
3>Cross bar pitches:38, 50, 60,100mm, of which 50mm & 100mm are
recommended.
No. | Item | Description |
1 | Bearing bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10,100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1'x3/16', 1 1/4'x3/16', 1 1/2'x3/16', 1'x1/4', 1 1/4'x1/4', 1 1/2'x1/4', 1'x1/8', 1 1/4'x1/8', 1 1/2'x1/8' etc. |
2 | Bearing bar pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
3 | Cross bar pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2' & 4' etc |
4 | Material Grate | ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc |
5 | Surface treatment | Black, self colour, hot dip galvanized, painted, spray coating |
6 | Grating Type | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
7 | Standard | China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Germany: DIN24537-1-2006, Japan :JIS |
8 | Application | -Rotation ways, channels, and platforms for pump rooms and engine
rooms in various ships; -Flooring in various bridges such as railway bridge sidewalks, over-bridges across the street; -Platforms for oil extraction sites, car washing sites and air towers; -Fencings for car-parks, buildings and roads; drainage trench covers and drainage pit covers for high strength . |
Q:Why choose us?
A: Direct factory,competitive factory price, quality assurance,local stock,fast delivery.
Q: How about the payment terms?
A:We usually use the T/T,L/C order. (100% guaranteed transaction by ).
Q: How about the delivery time?
A:Usually within 15- 20 days, customized order may need longer time.
Q:Can you offer free sample?
A:Yes, It is our pleasure to provide sample,but usually the customer need to pay the freight,
We'll send back the courier charge if you make an order.
|
