2 Axis 4 Frame Multiple Spectral Electro Optic Camera Sensor 120kg
TS508D Gyro Stabilized Electro Optic System
TS508D is a large-scale pod adopting multi-band common aperture
technology. Equipped with a conductive slip ring, it enables 360° continuous
rotation. three IR sensors (cooled MWIR sensor, SWIR, and black & white NIR),
30km laser rangefinder, and over 10km laser irradiation distance. With 360° continuous rotation servo motor and total weight of
approximately 80kg, this airborne electro-optical system offers
lightweight design, mature high-stabilization accuracy pan-tilt
servo system technology, , but also on naval ships and vehicle
carriers, satisfying maritime and aerial operations.Optional AI recognition and tracking function independently
developed by HONPHO is available.
System Functions
- Provide infrared video and image for detection area
- High precision visual axis stabilization function
- Capability of detection and recognition for ground targets
- Support search, tracking, lock, guiding, and other working modes
- Character overlay, custom and display functions
- Self-check and fault diagnosis function
- Target position, laser ranging and laser irradiation capabilities
- Support manual tracking, geographic tracking, automatic tracking
and search tracking
- Target laser ranging with real-time angular line of sight, angular
speed and range information
- Laser instructions for laser-guided weapons with user-defined
precise frequency codes
Technical Specifications
| Component | Parameter | Value |
|---|
| EO Sensor | Wavelength | 3.7μm～4.8μm |
| Resolution | 640*512 |
| FOV | 30.6º*17.2º～1.53º*0.86º |
| Detection Distance | ≥12km |
| Identification Distance | ≥7km |
|
| IR Sensors | IR Type | MWIR | SWIR | NIR (Black & White) |
| Wavelength | 3.7μm～4.8μm | 0.95μm～1.7μm | 0.65μm～0.9μm |
| Resolution | 640*512 | 640*512 | 1920*1080 |
| Guiding FOV | 30°*24° | *** | - |
| Large FOV | 7.44°*6° | 7.44°*6° | - |
| Middle FOV | 1.86°*1.5° | 1.86°*1.5° | - |
| Small FOV | 0.47°*0.37° | 0.45°*0.36° | 0.5º*0.5º (30.6º*17.2º～1.53º*0.86º
continue zoom) |
| Detection Distance | ≥30km | ≥30km | ≥45km |
| Identification Distance | ≥20km | ≥20km | ≥30km |
|
| Laser Rangefinder | Wavelength | 1064nm |
| Laser Energy | ≥80mJ |
| Ranging Distance | 300m～30km |
| Ranging Accuracy | ±2m |
| Laser Designator | ≥10km |
| Laser System | Laser Irradiation Code | 8 groups (Adjust and expand optional) |
|
| Light Spot Searching & Tracking | Wavelength | 1064nm |
| Detector | Four-quadrant |
| FOV | ≥4° |
| Searching & Tracking Distance | ≥10km |
| Accuracy | ≤1mrad |
| Servo System | Rotating Limits | 360° continuous Pan, Pitch: -120° ~ +45° |
| Stabilization Accuracy | Line of sight stabilization accuracy ≤10μrad (1σ) |
| Max. Angular Speed | ≥70°/s |
| Geo-positioning Coordinate Accuracy | ≤20m/10km |
| Max. Angular Acceleration | ≥60°/s² |
|
| Interface | Control Interface | 1*RS422 (TTL optional) |
| Signal & Image Output | 4*HDSDI |
Mechanical Drawing
Technical diagrams available upon request.
Company Profile
Chengdu HONPHO Technology Co., Ltd. was established in March 2018 as a national high-tech enterprise
focusing on R&D, intelligent manufacturing and service of
high-end photoelectric systems. HONPHO's main products are
spherical photoelectric payload systems, widely deployed in UAVs,
unmanned ships, unmanned vehicles, helicopters and low-speed
fixed-wing aircraft, especially for reconnaissance and strike UAVs
and armed helicopters.
HONPHO operates from nearly 5,000 square meters of space to meet
R&D, production, operation and office needs. With over 100
employees including 2 national senior experts, 3 doctors, 21
masters, 10 technical experts with senior titles and 4 researchers,
the company has won more than 10 prizes for national and national
defense science and technology progress, and holds over 20
intellectual property rights. HONPHO is committed to becoming a
world-renowned photoelectric system high-tech enterprise.
HONPHO headquarters and R&D center

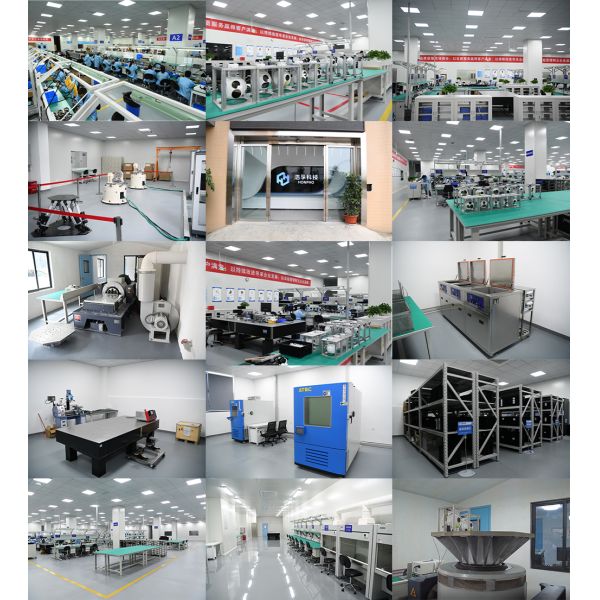

HONPHO Production Base
