Flat 28mm PM Stepper Motor Low Noise Stepper Motor For Laser Printer

Flat 28mm PM Stepper Motor Low Noise Stepper Motor For Laser Printer
Flat stepper motor with small volume and low noise. 2 Phase, 1.8 Degree, 28mm PM Stepper Motor designed for laser printers. The Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.
Features
  • Bipolar or unipolar versions available
  • Hybrid stepper construction
  • Available in single or double shaft versions
  • CE and RoHS approved
  • Customizations on request
Dimensions

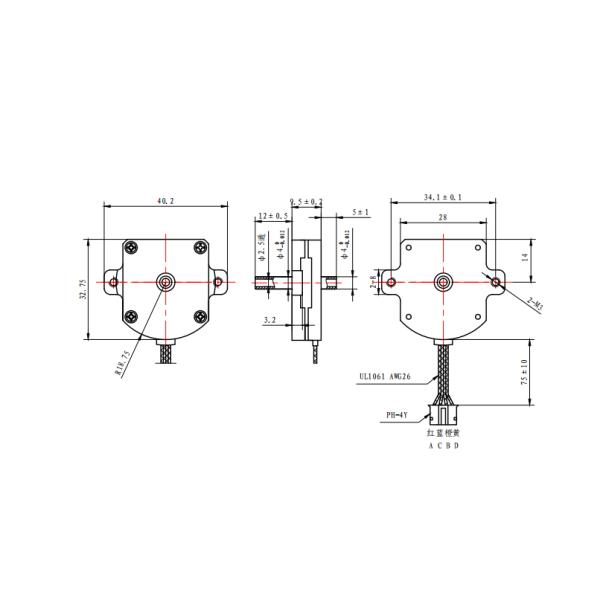

28mm PM Stepper Motor dimensional diagram
Motor Specifications
Step Angle1.8°
Frame Size28mm
Number of Phase2 Phase
Rated Current0.5Amp
Holding Torque16 mN.m
Resistance3.5 Ω
Inductance0.9mH
Rotor Inertia2 g-cm²
Motor Weight0.03kg
Number of Leads4
ConnectionBipolar
Operating Specifications
Step Angle: 1.8°
Maximum Temperature: 80°C maximum
Ambient Temperature: -20°C to 50°C
Storage Temperature: -20°C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130°C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 min
Submodels
ModelMotor LengthCurrentHolding Torque
P28SHD46119.5mm0.5A16mN.m
P28SHD470110.6mm0.5A20mN.m
P28SHD475013-15mm0.5A25mN.m
P28SHD495017.9mm0.5A35mN.m
Custom Motor Solutions
If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
Options
Encoder option for stepper motor
Encoder
Brake option for stepper motor
Brake
Gearbox option for stepper motor
Gearbox
Shaft option for stepper motor
Shaft
