NEMA 17 stepper motor controller for 3D printer power supplies electrical with certification

Categories NEMA 17 Stepper Motor
Brand Name: Casun
Model Number: 42SHD0287-24BH
Certification: CE,ROSH,ISO
Place of Origin: CHINA
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Delivery Time: 7-15 days
Packaging Details: Carton:36x29x14cm
Step angel: 1.8°
Holding Torque: 450mN.m
Current: 1.5A
Motor Length: 40mm
Shaft: Milling Flat Shaft 24mm Length
Customized: The motor can be designed &manufactured with customized request.
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

NEMA 17 stepper motor controller for 3D printer power supplies electrical with certification

NEMA 17 Stepper Motor Controller for 3D Printer Power Supplies
The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. When used in conjunction with stepper motor drivers, complex motion trajectories can be easily achieved.
Key Features
  • Bipolar or unipolar versions available
  • Hybrid stepper construction
  • Expert in drivetrain solutions
  • Contract-based manufacturing services are welcome
  • Customizations on request
Appearance
NEMA 17 stepper motor appearance
Dimensions

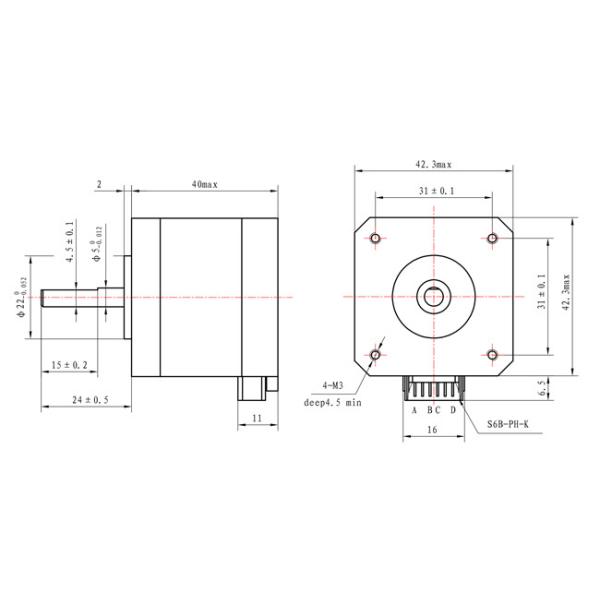

NEMA 17 stepper motor dimensional drawing
Motor Specifications
Step Angle1.8°
Frame Size42 mm
Number of Phase2 Phase
Rated Current1.5 A
Holding Torque450 mN.m
Resistance2.3 ohm
Inductance4.4 mH
Rotor Inertia57 g-cm²
Motor Weight0.24 kg
Number of Leads4
ConnectionBipolar
Operating Specifications

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20°C to 50°C

Storage Temperature: -20°C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130°C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Available Models
ModelHolding TorqueStep AngleMotor LengthType of ShaftRated Current
42SHD49500.13N.m1.8°20mmD Shaft-20mm1.0A
42SHD40030.26N.m1.8°34mmD Shaft-20mm0.4A
42SHD02610.45N.m1.8°40mmD Shaft-20mm1.68A
42SHD44250.59N.m1.8°48mmD Shaft-24mm2.0A
42SHD48130.8N.m1.8°60mmD Shaft-24mm2.1A
Customization Options
If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
Available Options
Encoder option for stepper motor
Encoder
Brake option for stepper motor
Brake
Gearbox option for stepper motor
Gearbox
Shaft option for stepper motor
Shaft
Please click the "Get a quote" button below to tell us your requirements.
