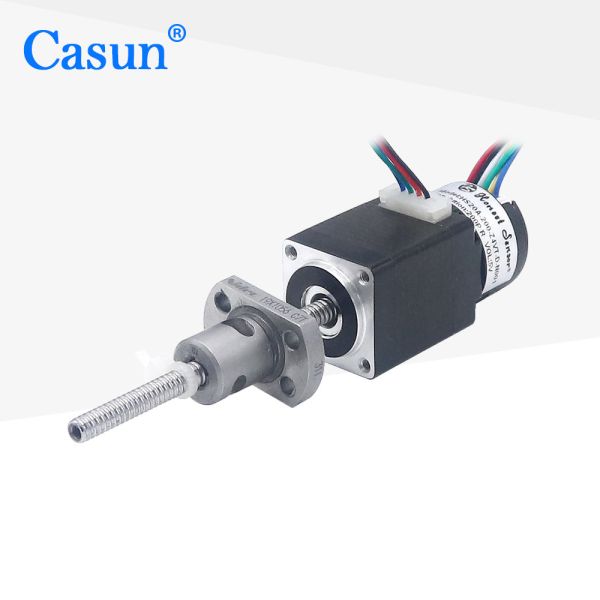

| Categories | NEMA 8 Close Loop Motor |
|---|---|
| Brand Name: | Casun |
| Model Number: | B20SHD4351-56GPQ |
| Certification: | CE,ROHS,ISO |
| Place of Origin: | CHINA |
| MOQ: | 1PC |
| Price: | $20-$28 |
| Payment Terms: | D/A, T/T, L/C, D/P |
| Supply Ability: | 40000+PCS+Month |
| Delivery Time: | 7-15 days |
| Packaging Details: | Carton:38x29x18cm |
| Step angel: | 1.8° |
| Holding Torque: | 450mN.m |
| Current: | 0.5 |

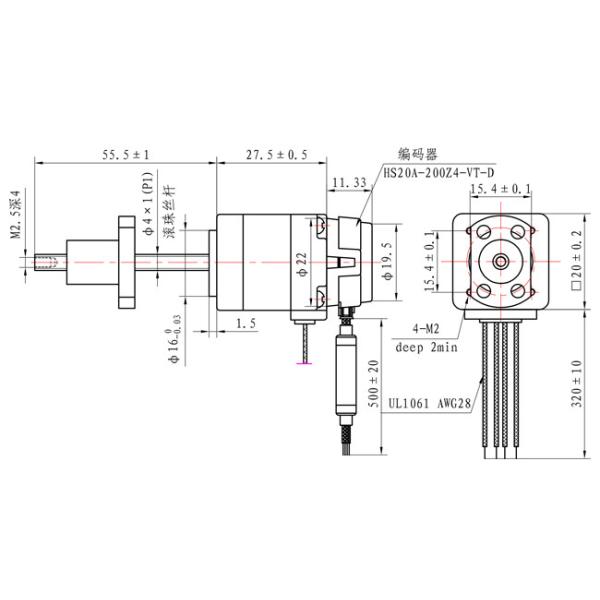

| Motor Length: | 27.5mm |
| Shaft: | Ball Screw 55.5mm |
| Customized: | The motor can be designed &manufactured with customized request. |
| Company Info. |
| GUANGZHOU FUDE ELECTRONIC TECHNOLOGY CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
| Step Angle | 1.8° |
| Frame Size | 20 mm |
| Number of Phase | 2 Phase |
| Rated Current | 0.5 A |
| Holding Torque | 14 mN.m |
| Resistance | 5.5 ohm |
| Inductance | 1.5 mH |
| Rotor Inertia | 2 g-cm² |
| Motor Weight | 0.08 kg |
| Number of Leads | 4 |
| Connection | Bipolar |
Step Angle: 1.8°
Maximum Temperature: 80°C maximum
Ambient Temperature: -20°C to 50°C
Storage Temperature: -20°C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130°C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 min
Download: Technical documentation available upon request
If our standard motor cannot meet your needs, we can customize the motor according to your requirements.
Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
Please click the "Get a quote" button below to tell us your requirements.
