CE Approved Electronic Convex Array USG Cardiac Probe Ultrasound For Android

CE APPROVED WIRELESS ULTRASOUND PROBE ELECTRONIC CONVEX ARRAY

OVERVIEW

The Wireless Convex Color Ultrasound Probe H35C: A Versatile and User-Friendly Diagnostic Tool

It is a powerful and versatile diagnostic tool designed to meet the needs of healthcare providers. With its wireless design, the device provides greater flexibility and freedom during examinations, eliminating the need for cables or wires. Additionally, the device is waterproof, making it easy to sterilize and clean.

H35C provides up to 2 hours of use on a full charge, providing ample time for examinations. Its advanced digital imaging technology produces clear and accurate images, making it ideal for diagnosing a range of medical conditions. The device is lightweight and easy to operate, with a handheld design that allows for comfortable and efficient use.

H35C is suitable for use in emergency situations, clinics, and outdoor inspections, providing reliable and efficient diagnostic capabilities in a range of settings. Its powerful intelligent terminal platform and expansion functions provide flexibility and adaptability to the needs of healthcare providers.

APPLICATIONS

• Abdomen, Gynecology, Obstetric, Urology, Kidney

SPECIFICATIONS

• Scanning mode	Electronic Convex Array
  Display mode	B/C/M/PW/PD
  Frequency	2/3.6/6MHz
  Depth	378mm maximum
  Image Adjust	Gain, TGC, Focus, Harmonic, Denoise, Depth, Dynamic Range, Color Gain, PRF, Steer
  Biopsy assist function	the function of in-plane biopsy guide line, out-of-plane puncture guide line, automatic blood vessel measurement, and the enhancement function of needle point development
  Measure	Length, Area, Circumference, Angle, Trace, Obstetrics
  Image frame rate	Max 30 FPS
  Image save format	JPEG/BMP/PNG/MPEG-4
  Dimension	17.9*7.5*3.4cm
  N/W	330g
  WiFi Type	802.11g/20MHz/5G/450Mbps
  Battery	3,000mAh, maximum 2-hour continous use
  Compatible Systems	iOS, Android smart device
  Warranty	12 months




CONTENT INCLUDED

• Wireless Portable Ultrasound Transducer – H35C Wireless Ultrasound Probe
• Internal Battery
• Charging Cable
• User Manual
• Warranty Card

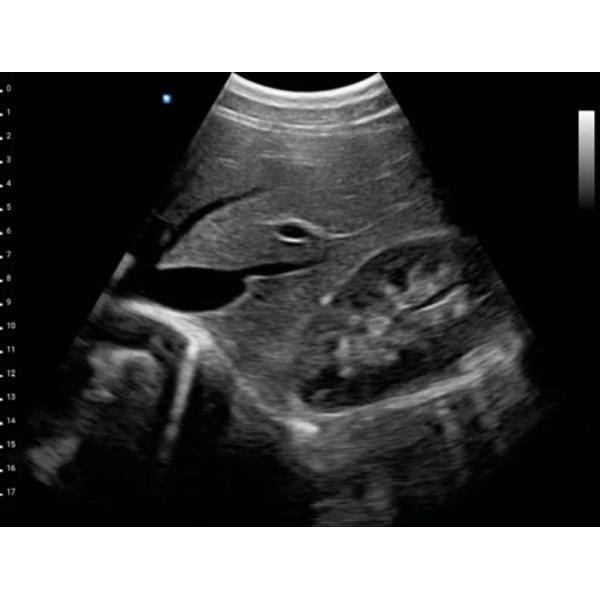

IMAGE GALLERY

Established in 2010, Golead Medical Group Co.,Ltd is a professional medical equipment manufacturer supplying multiple products including ultrasound system (human and veterinary use, handheld and traditional type), veterinary patient monitor, veterinary anesthesia machine, veterinary infusion bump, RF plasma coblation surgery system, RF lesion generator, etc. There are 8 branches(R&D, sales, after-sale service) spread in Chinese main big cities such as Beijing, Shenzhen, and Chengdu.

Garthering a group of outstanding engineers from all over the world, Golead has a strong R&D team to confirm high quality and stability. That’s why Golead is so famous rapidly. We have built long term business in main markets including USA, Mexico, Brazil, France, UAE, Egypt, South Africa, KSA, Spain, Italy, etc, and we are doing our best to provide service for more customers.
