| Categories | Analog HD CCTV Camera |
|---|---|
| Brand Name: | WINBO |
| Model Number: | SAV |
| Certification: | CE, ROHS |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, |
| Supply Ability: | 10000 |
| Packaging Details: | Neutral factory box |
| Model Number:: | SAV- LIRDLTHC500FK |
| Sensor: | 1/2.5" CMOS Sensor |
| IR Range: | 20M |
| Pixel: | 5MP |
| Waterproof: | IP66 |
| Led: | 14µ x 18 |
| High Definition: | 1M/1.3M/2M |
| OSD: | Support coaxial control |
| Company Info. |
| Shenzhen Winbo Digital Co., Ltd. |
| View Contact Details |
| Product List |
5MP 4IN1 Analog HD Dome CCTV Camera Support IR 20m With 18pcs IR
LED
Features
Specifications
| Camera | |
| Image Sensor | 1/2.5" CMOS Sensor |
| Image Resolution | 5MP |
| Effective Pixels | 5M:2592*1944 4M:2560*1440 |
| TV System | PAL/NTSC |
| Electronic Shutter | 1/25s~1/50,000s , 1/30s~1/60,000s |
| S/N Ratio | ≥50dB |
| Scanning System | Progressive Scan |
| Lens | |
| Focus Length | 3.6mm |
| Focus Control | Fixed |
| Lens Type | Fixed |
| Pixels | 6M Pixels |
| Auto Iris Support | NO |
| Night Vision | |
| Infrared LED | 14µ x 18PCS |
| Infrared Distance | 20M |
| IR Status | Under 10 Lux by CDS |
| IR Power On | CDS Auto Control |
| Camera Features | |
| Starlight | / |
| Day/Night | YES |
| OSD Menu Language | YES |
| White Balance | AUTO / MANUAL |
| Gain Control | AUTO |
| Noise Reduction | DNR |
| Picture Adjustment | YES |
| WDR | YES |
| OSD Support | YES |
| UTC | YES |
| Dip Switch | / |
| General | |
| Housing | Plastic |
| Bracket | NO |
| Dual Voltage | NO |
| IR Cut Filter | YES |
| Heater | NO |
| Audio | / |
| Operation Temperature | -10℃ ~ +50℃ RH95% Max |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max |
| Power Source | DC12V±10%, 550mA |

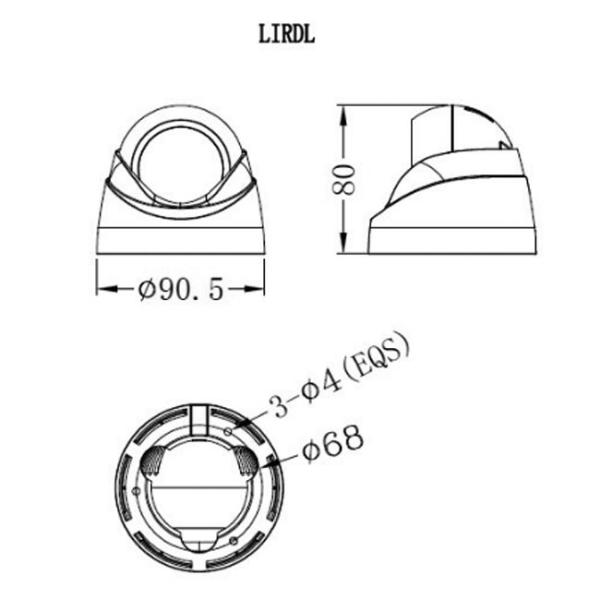

| Dimension | 90.5(W) x 80(H) x 80(D)mm |
| Weight | 300g |
|
