Passive CWDM Multiplexer with High Isolation SC/APC Connector for 2CH WDM Network Module

Passive CWDM Multiplexer with High Isolation SC/APC Connector for 2CH WDM Network Module

Passive CWDM Multiplexer with High Isolation SC/APC Connector for 2CH WDM Network Module
Passive CWDM Multiplexer with High Isolation SC/APC Connector for 2CH WDM Network Module
Categories CWDM Mux Demux
Brand Name: GEZHI or OEM
Model Number: DWDM108XXX
Certification: CE RoHS,ISO9001
Place of Origin: China
MOQ: 1pc
Price: US$28-US$68
Payment Terms: T/T,Western Union
Supply Ability: 100000Channel per month
Delivery Time: 5-8 work days
Packaging Details: Paper box
Product Name: Passive CWDM Multiplexer
Wavelength: 1510/1530nm
Connector: SC/APC
Features: High Isolation
Application: WDM Network
Channel Number: 2CH
Fiber Type: SMF-28e
Contact Now
Company Info.
Gezhi Photonics (Shenzhen) Technology Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Passive CWDM Multiplexer with High Isolation SC/APC Connector for 2CH WDM Network Module

Rack Mount ABS Module DWDM MUX DEMUX 8 Channel 1310/1490/1550nm CATV PON WDM
GEZHI Photonics Co., Ltd specializes in manufacturing optical communication components including CWDM, DWDM, AWG DWDM modules, optical switches, and patch cords.
GEZHI Photonics optical components manufacturing facility DWDM MUX DEMUX module technical details Close-up view of DWDM optical module
DWDM Fiber Multiplexer for Telecom Applications
This compact ABS module (100*80*10mm) integrates a multiplexer or demultiplexer for single fiber applications. With low insertion loss, high stability, and reliability, it's ideal for FTTX, WDM networks, and data centers.
Key Features
  • Low Insertion Loss
  • Low Polarization Dependent Loss (PDL)
  • High Channel Isolation
  • Excellent Environmental Reliability
Applications
  • WDM Systems
  • CATV Networks
  • Metro/Access Networks
  • Data Centers
Performance Specifications
ParameterUnitDWDM Fiber Multiplexer
Channel Number--8+1CH
Operation WavelengthnmC53 to C60
Channel Central WavelengthnmITU-T Grid @DWDM
Channel Passbandnm0.8 (100GHz)
Insertion Loss @PBdB<2.5
Isolation @Adjacent ChanneldB>30
Isolation @Non-adjacent ChanneldB>34
Isolation @Reflect ChanneldB>15
Passband RippledB<0.5
Polarization Dependent LossdB<0.15
Polarization Mode Dispersionps<0.1
Directivity & Return LossdBDirectivity: >50 Return Loss: >45
Power HandlingmW<500
Connector--LC/UPC or customized
Fiber Type--SMF-28e or Customized
Operating Temperature℃-20 to +70
Storage Temperature℃-40 to +85
Package DimensionmmABS box 100*80*10
Filter Cascading
SC APC Single Fiber C28 100GHz Passive 8 Channel DWDM Mux filter cascading
Single Fiber DWDM Optics Transmission Solution

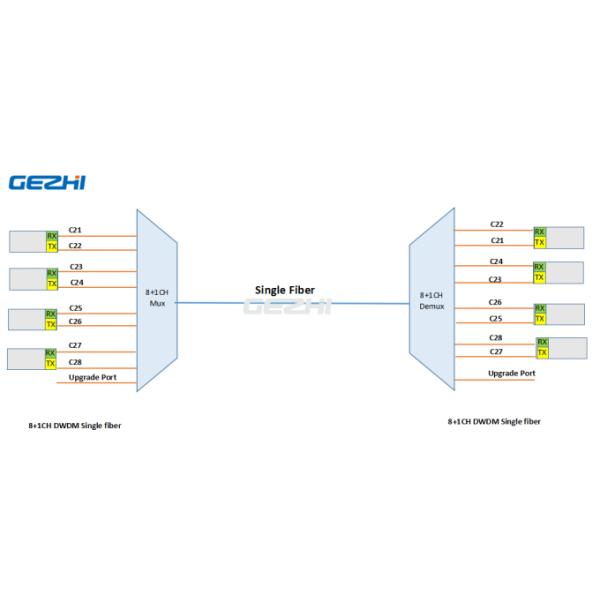

Single Fiber DWDM transmission solution diagram
Package Details

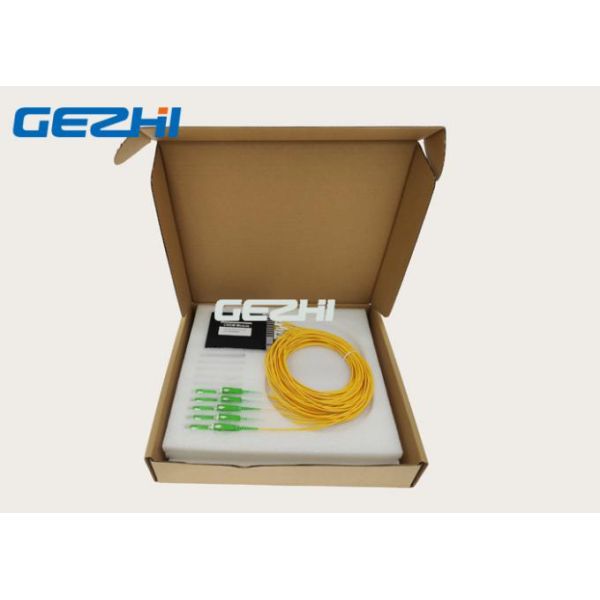

DWDM module packaging and dimensions
