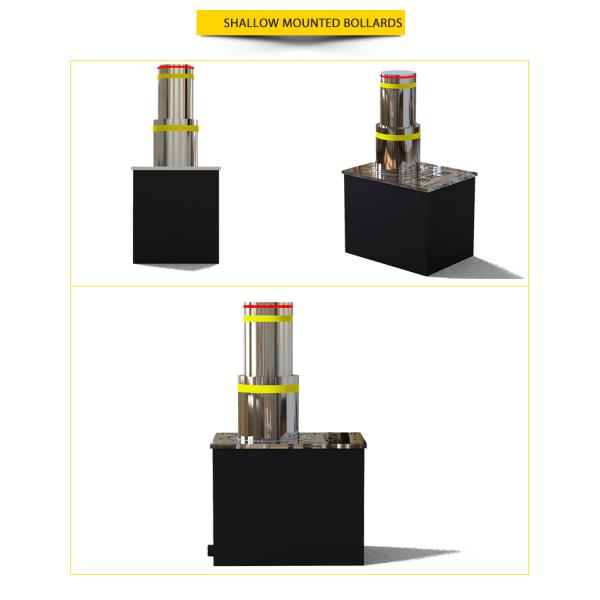

Automatic Cylinder Hydraulic Rising Bollard SS304 Segmented
Sectional Type
304 Stainless Steel 219mm diameter 273mm Segmented Sectional Type
Automatic Cylinder Hydraulic Rising Bollard
Hydraulic road bollards provide high-level security against
unauthorized vehicle access while maintaining a professional,
non-aggressive appearance. SINOMATIC high-security hydraulic road
bollards offer reliable protection for high-security risk areas and
are ideal for traffic calming in high-traffic flow zones.
Product Advantages
- Multiple steel thickness options available (default 6mm)
- Various color customization options
- Custom sizing available to meet specific requirements
- Steady and safe operation with OMRON PLC control system
- Fast rising time and durable quality with hydraulic pressure
- Durable galvanized steel housing
- Optimized frame structure with high anti-impact and loading
capability
- Enhanced security and anti-collision ability
- Reflective band and low-energy consumption LED lighting for night
visibility
Technical Specifications
| Dynamic Power | Electric hydraulic system |
|---|
| Voltage | AC220V/110V(±10%) Integrated |
|---|
| Power | 370W |
|---|
| Up Speed | 4.5S |
|---|
| Down Speed | 3S |
|---|
| Material | 304 stainless steel |
|---|
| Rising Height | 600mm |
|---|
| Diameter | Top segment 219mm, second segment 273mm |
|---|
| Casing Size | 650*480*530 (D219) |
|---|
| Emergency Feature | Manual lowering capability via battery during power outages |
|---|
Key Features
Security & Performance
- High security and anti-collision capability
- Pneumatic air pump in control cabinet provides sustained high power
safely
- Electronic control with automatic rise/fall functionality
- High system independence
Visibility & Safety
Various color options for Glossee aveolate reflective band;
requires minimal light for clear nighttime visibility.
Material Options
Available in 304 stainless steel, 316 stainless steel, and carbon
steel with electrophoresis spray paint.
Flange Design
Anti-skid flange with unique pattern design compatible with various
road surface styles. Built-in PA orientation.
Top Cap
Simple integration design compatible with all architectural styles.
Excellent workmanship resistant to close attacks.
About SINOMATIC Company
Located in Shenzhen, China, our manufacturing plant spans
approximately 5,000 square meters and is equipped with modern
production lines, powder coating facilities, development
departments, and processing centers.
Our products are widely used in transportation roads, schools,
government agencies, airports, prisons, , customs, border control,
parks, smart cities, and other security-sensitive fields.
We leverage our knowledge, experience, manufacturing, and design
capabilities to offer greater flexibility than other manufacturers,
providing custom solutions with short lead times and excellent
value. Our focus is on delivering highly resistant and durable
products at reasonable prices with extensive customization and
system integration options.
With excellent cost performance in international markets, our
products are exported to Europe, US, East Asia, Russia, and Middle
Eastern countries. Advanced technology meets the highest
international quality standards, with comprehensive design,
superior technological standards, and exceptional corrosion
protection earning customer trust worldwide while maintaining
competitive pricing.
Our company has experienced rapid growth in recent years and now
employs 100 skilled professionals dedicated to quality
manufacturing.
