Granite And Marble Stone Bridge Block Cutting Machine
Key Specifications
| Power Supply | AC |
| Gross Weight | 6800kg |
| Main Motor | 22-6kw/30-6kw |
| Trolley Size | 3000*2000mm |
| Worktable Rotating Angle | 0-90° |
| Max Lifting Travel | 760mm |
| Safety System | Available |
| Outline Dimension | 6150*4800*4400mm |
| Max Blade Diameter | 1200mm |
| Water Consumption | 4m3/H |
Product Overview

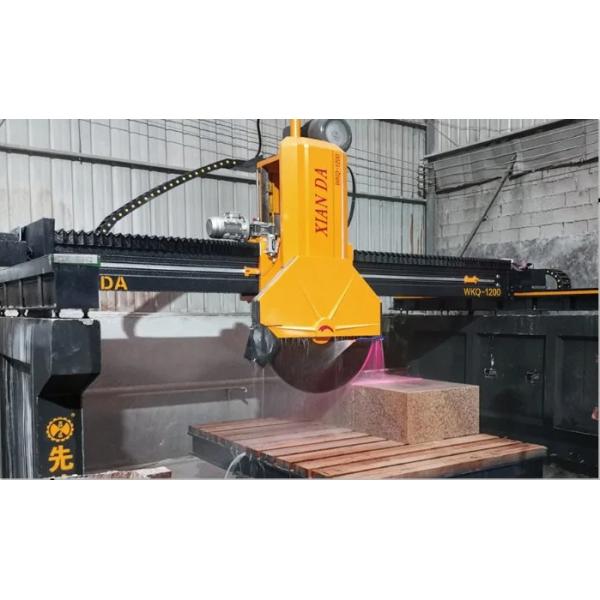

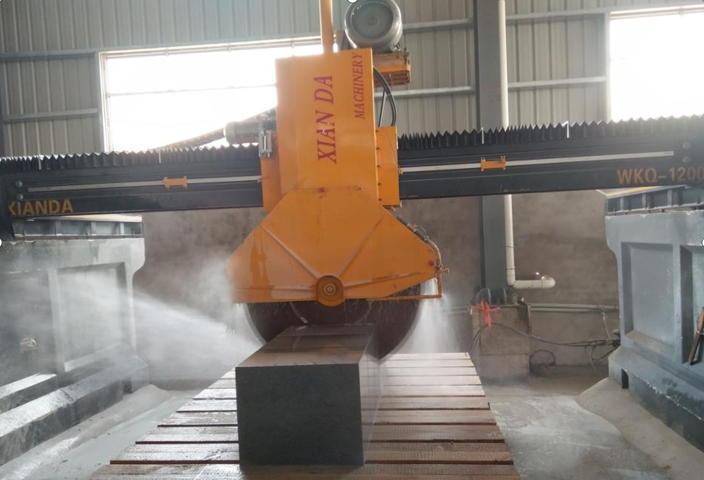

The Bridge Saw Cutting Machine is a CNC machine specially designed
for cutting granite and marble. Featuring low water consumption of
only 4m3/h, automatic table movement, and a wide range of blades
from 700mm to 1200mm, this machine delivers precision cutting with
an outline dimension of 6150*4800*4400mm. Designed for easy
operation and maintenance, it comes with a 1-year warranty and is
ideal for achieving perfect cuts in stone materials.
Technical Parameters
| Product Name | Middle block cutting machine WKQ-1200 |
| Blade Diameter Range | 700-1200mm |
| Water Consumption | 4m3/H |
| Max Lifting Travel | 760mm |
| Worktable Rotating Angle | 0-90° |
| Trolley Size | 3000*2000mm |
| Main Motor | 22-6kw/30-6kw |
| Outline Dimension | 6150*4800*4400mm |
| Gross Weight | 6800kg |
| Gross Power | 29/37kw |
Applications
The XIANDA MACHINERY WKQ-1200 Middle Block Cutting Machine delivers high-efficiency precision cutting for granite and other
stone materials. With its automatic trolley (3000*2000mm) and
robust construction (6800kg gross weight), this CNC machine
provides accurate cutting solutions for curved and irregular
shapes.
Ideal for construction industry applications, it handles:
- Marble and granite cutting
- Tile and slab processing
- Concrete and sandstone cutting
- Large-scale industrial projects
Customization
Manufactured in Jinjiang, Fujian, China, the WKQ-1200 features
automatic table movement with a max processing size of
3200*2000*120mm. The 0-90° worktable rotation and 4m3/H water
consumption make it an excellent solution for bridge cutting
applications in marble and granite.
Support and Services
Our comprehensive support ensures optimal machine performance:
- Professional installation and setup
- Operator training programs
- Maintenance and repair services
- System upgrades and modifications
- Remote technical support
Packaging and Shipping
Each machine is securely packaged with bubble wrap and foam
padding, then placed in reinforced cardboard boxes to ensure safe
delivery.
Frequently Asked Questions
What is the brand and model of this machine?
Brand: XIANDA MACHINERY. Model: WKQ-1200.
Where is this machine manufactured?
Jinjiang, Fujian, China.
What materials can this machine cut?
Marble, granite, ceramic, and quartz.
Does the machine include a blade?
Yes, it comes with a diamond blade.
