| Warranty: | 1year |
| Customized support: | OEM |
| Brand Name: | Huiyu |
| Model Number: | WT600F-2A |
| Place of Origin: | Beijing, China |
| Application: | Food and Beverage Industry, Pharmaceutical industry, wastewater treatment, Metering |
| Horsepower: | 0.4 |
| Power Source: | Electric |
| Pressure: | 0.2mpa |
| Structure: | reciprocal |
| Cable Length: | 1.5m |
| Outlet Size: | 9.6mm |
| Voltage: | 220v |
| Power: | 400w |
| motor: | DC brushless motor |
| product: | peristaltic pump |
| Brand: | Huiyu |
| flow rate: | 0.7-6000ml/min |
| power supply: | AC 90V-260V/40W |
| motor speed: | 10-600 rpm |
| dimension(LxWxH): | 285 X207 X 180 (mm) |
| Drive weight: | 5.2 kg |
| Certification: | ce |
| Packaging Details: | 1 peristaltic pump in 1 carton , with foam plastic |
| Port: | Beijing,Tianjin,Qingdao |
| Supply Ability: | 100 Set/Sets per Week |
| Price: | $1,150.00/sets >=1 sets |
| Company Info. |
| Huiyuweiy(Beijing) Fluid Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

Technical paremeter
Speed : 10-600 rpm, reversible
Speed precision: 1 rpm
Speed control: toggle switch and rotary encoded switch, accept
external control and communication control
Display: LCD
Dispensing volume: 0.1 mL to 99.9 L
Calibration function: The flow rates and the dispensing volume can
be calibrated to increase the accuracy
Copy number: 1 to 9999 , 0 means unlimited cycle
Pause time : 0.1 s to 99 min
External control: start/stop control, direction control, speed
control (0 - 5V ,0 -10V , 4 - 20 mA , 0 - 10KHz optional )
running mode signal output: 166.7Hz-10kHz
corresponding10rpm-600rpm
Start and stop status signal output: OC gate signal output
Direction status signal output: OC gate signal output
Communication interface: RS 485
Memory function: repower the pump, user can choose whether to
continue in accordance with the state before the power-down
Prime button for fast filling and emptying
Power: AC 90V-260V/40W
Operating condition: Temperature 0 to 40°C, relative humidity <
80%
Dimensions (L × W × H): 285 × 207 × 180 (mm)
IP rating: IP 31
Drive weight: 5.2 kg
Technical parameters
| Pump head Picture | Pump head model | Available tubing | flow rate range (ml/min) |
| YZ15-1A | 13#,14#,19#,16#,25#,17#,18# wall thickness 1.5mm | 0.7-2200ml/min | |
| 2* YZ15-1A | single channel 0.7-2200ml/min | ||
| YZ25-1A | 15#,24# wall thickness 2.5mm | 17-1600ml/min | |
| 2* YZ25-1A | single channel 17-1600ml/min | ||
| BZ25-1A | 24# wall thickness 2.5mm | 29-1600ml/min | |
| KZ25 | 15#,24#,35#,36# | 34-6000ml/min |

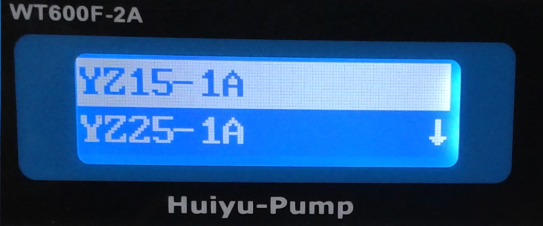

photo of the screen
