| Categories | Self Locking Washer |
|---|---|
| product name: | 1 1/2'' X 2'' Impaling Clips |
| Material: | Galvanized steel |
| Standard size: | 1 1/2'' X 2'' in common |
| Fixing Hole dia: | 6 mm |
| Height: | 15 mm |
| Thickness: | 1.0 mm |
| application: | Wood Connector |
| sample: | available |
| Brand Name: | HUIHAO |
| Model Number: | Impaling Clips |
| Certification: | ISO9001-2008 |
| Place of Origin: | China |
| MOQ: | Negotiable |
| Payment Terms: | L/C,T/T,Western Union,paypal |
| Supply Ability: | 200000 per week |
| Delivery Time: | 7 work days |
| Packaging Details: | usually 20piece,50piece or 200 piece in one carton box ,then pallet,Within 15 days after confirm the order |
| Company Info. |
| Huihao Hardware Mesh Product Limited |
| Verified Supplier |
| View Contact Details |
| Product List |
| Attribute | Value |
|---|---|
| Product Name | 1 1/2'' X 2'' Impaling Clips |
| Material | Galvanized steel |
| Standard Size | 1 1/2'' X 2'' in common |
| Fixing Hole Diameter | 6 mm |
| Height | 15 mm |
| Thickness | 1.0 mm |
| Application | Wood Connector |
| Sample | Available |

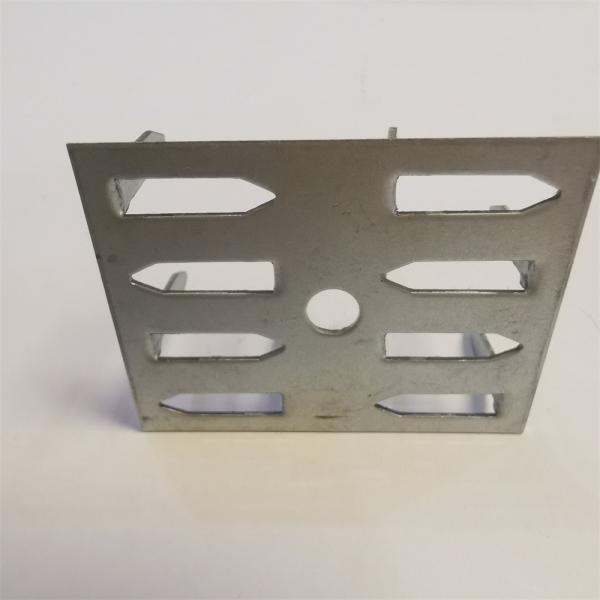

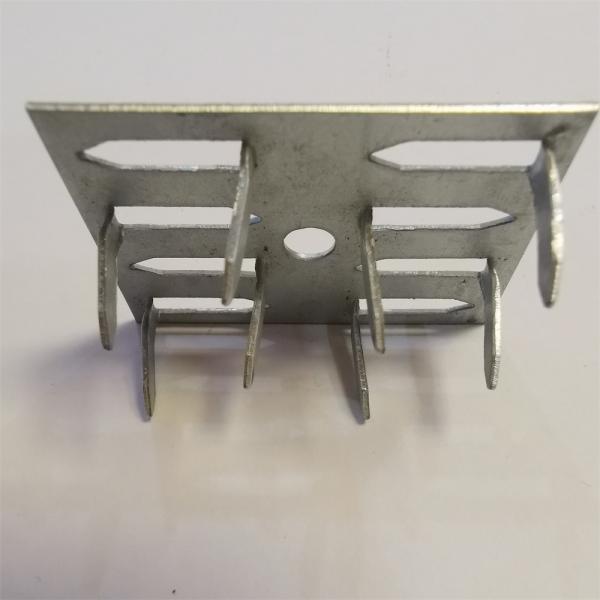

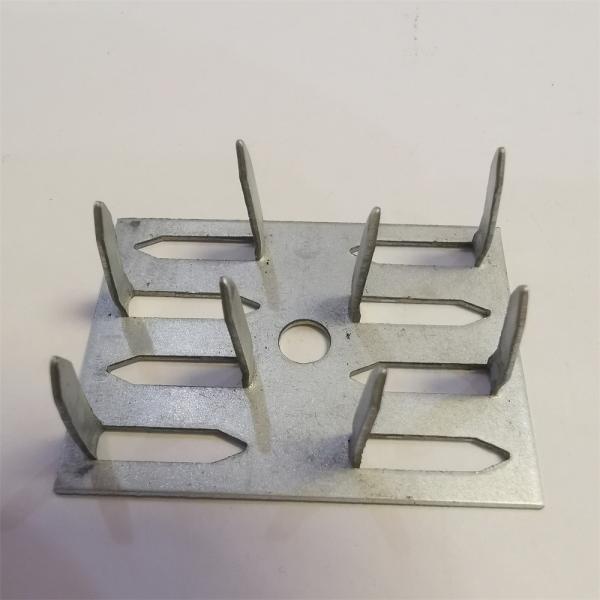

Impaling clips are designed to be used in acoustic panel installation. These extruded metal clips can either be glued or screwed to a surface. The acoustic panels make your space more quiet.
| Product Name | Acoustical Impaling Clips |
|---|---|
| Material | Carbon steel |
| Clip Thickness | 1mm |
| Clip Width | 1 1/2'' |
| Clip Length | 2'' |
| Clip Height | 15mm |
| Spikes Number | 8 pieces on each clip |
| Surface Treatment | Zinc coated or Galvanized steel |
| Fixing Hole Diameter | 6mm |
| Note | The washers size also could be made according to your requirements. |
It is widely used for Wood Connector, Furniture, industrial, Wood construction, shelf bracket, wall bracket, projector bracket, TV bracket, Air conditioner bracket etc.

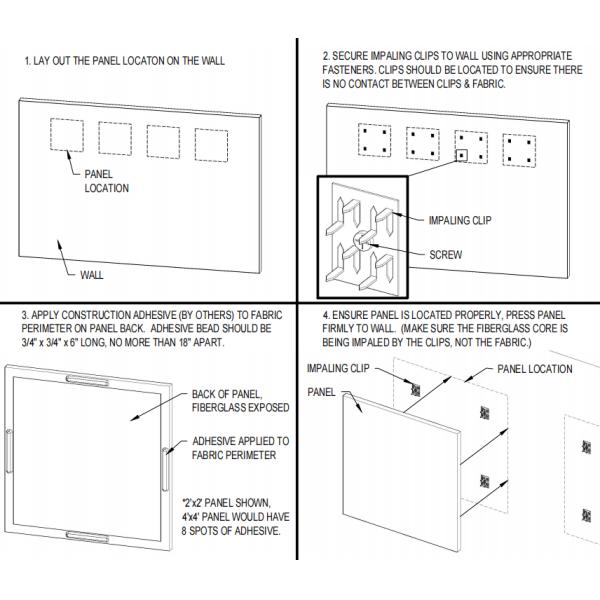

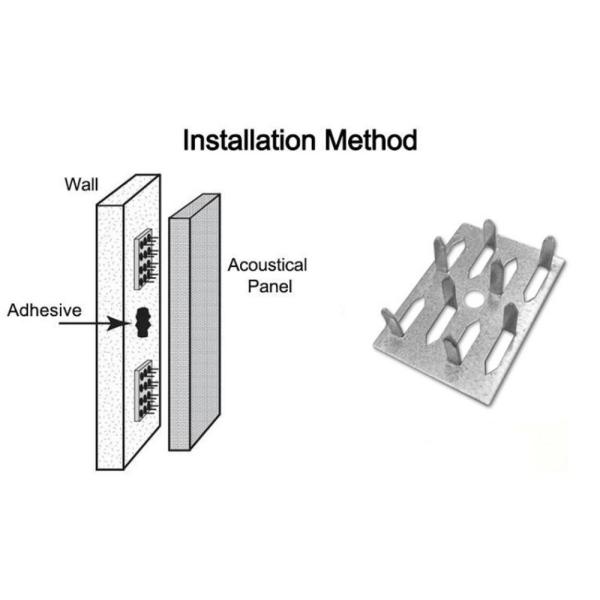

Wall Mount Clips simplify the installation of rigid fiberglass acoustic panels. Use screws to fasten the impaling clip to the surface, apply Poly Foam Adhesive on the clip and acoustic panel then press the fiberglass panel to the clip.

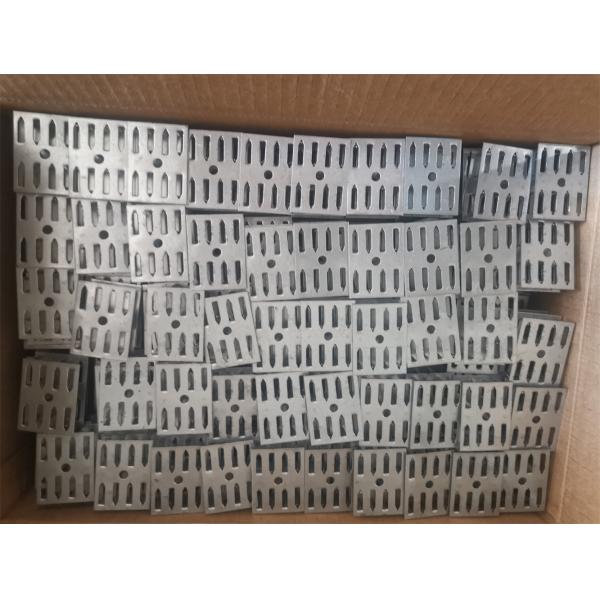

Packing method of the Acoustical Impaling Clips:
Carton: Standard packing in cartons
Note: The packing also could be according to your requirements.
