Integrated Bridge Saw Cutting Machine with high-percision

Categories Bridge Saw Cutting Machine
Brand Name: Xianda Machinery
Model Number: ZDBL-450/600
Place of Origin: Jinjiang, Fujian, China
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
MOQ: 1
Price: To Be Negotiable
Packaging Details: Plastic Package, Suitable for Sea Transportation
Delivery Time: 1 month
Payment Terms: L/C, T/T, D/P, ,Paypal ,, Others
Supply Ability: 1000 Sets/Year
Warranty: 1 Year
Gross Weight: 6500kg
Blade Diameter: 350-600mm
Gross power: 20.5kw
Safety System: Available
Table Movement: Automatic
Outline Dimension: 6000*3600*2650mm
Power Supply: AC
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Integrated Bridge Saw Cutting Machine with high-percision

Integrated Bridge Saw Cutting Machine with High Precision
Key Specifications
AttributeValue
Warranty1 Year
Gross Weight6500kg
Blade Diameter350-600mm
Gross Power20.5kw
Safety SystemAvailable
Table MovementAutomatic
Outline Dimension6000*3600*2650mm
Power SupplyAC
Technical Parameters
ParameterUnitZDBL-450ZDBL-600
Blade diameter rangemm350-450350-600
Max processing sizemm3200*2000*1003200*2000*170
Worktable sizemm3200*2003200*2000
Worktable tilting degree°0-85°0-85°
Blade rotation degree°0,90°0,90°
Blade tilting (optional)°0,45°(optional)0,45°(optional)
Water consumptionm³/h33
Main motorkw15(Permanent magnet motor)15(Permanent magnet motor)
Gross powerkw20.520.5
Outline dimensionmm6000*3600*26506000*3600*2950
Gross weightkg65007000

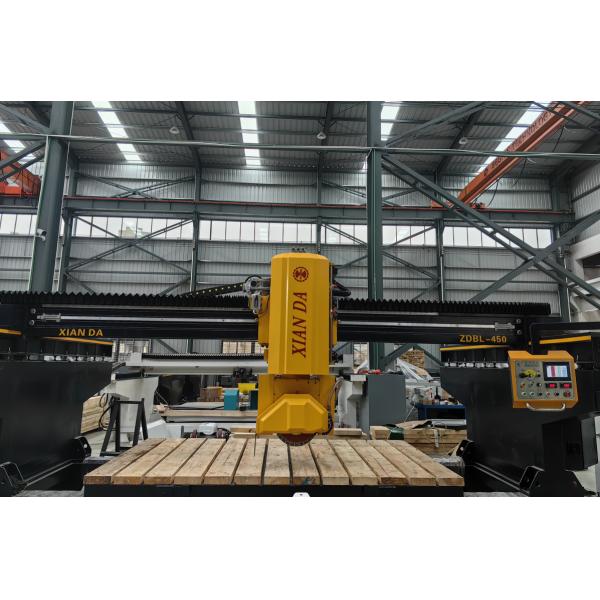

Bridge Saw Cutting Machine in operation cutting stone Close-up view of Bridge Saw Cutting Machine blade

The Bridge Saw Cutting Machine is an advanced and efficient tool for cutting granite and marble materials with precision and speed. With a blade diameter of 350-600mm and a gross power of 20.5kw, this machine is designed to handle heavy-duty cutting tasks with ease. It is the perfect choice for stone processing factories, construction companies, and other industries that require high-quality and accurate cutting of granite and marble.

The Bridge Saw Cutting Machine is suitable for cutting a wide range of granite and marble materials, making it a versatile and cost-effective tool. Whether you need to cut slabs, tiles, countertops, or other customized shapes, this machine can handle it all.

Applications

The Bridge Saw Cutting Machine is designed for cutting marble in various applications. It can be used in construction projects, such as building facades, flooring, and countertops. It is also commonly used in the production of marble slabs and tiles for interior design and decoration purposes.

The Bridge Saw Cutting Machine is suitable for use in both indoor and outdoor settings. It is commonly found in factories, workshops, and construction sites, where large quantities of marble need to be cut efficiently and accurately.

Customization Options
  • Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS, IAF
  • Minimum Order Quantity: 1 SET
  • Price: Negotiable based on customization requirements
  • Packaging: Plastic Package, Suitable for Sea Transportation
  • Delivery Time: 1 month
  • Payment Terms: L/C, T/T, D/P, , Paypal, , Others
  • Supply Ability: 1000 Sets/Year
Packing and Shipping

Our Bridge Saw Cutting Machine is carefully packaged to ensure safe delivery and protection during shipping. Each machine is wrapped in multiple layers of protective materials, including bubble wrap and foam, to prevent any damage during transportation.

The machine is then placed in a sturdy wooden crate and secured with straps to prevent any movement or shifting during transit. The crate is also labeled with handling instructions and product information for easy identification.

For international shipping, the machine is carefully loaded into a shipping container and secured to prevent any damage during sea transportation. Upon arrival at the destination, our team will carefully unload and inspect the machine to ensure it is in perfect condition.

Frequently Asked Questions
What is the brand name of this product?

The brand name of this product is XIANDA MACHINERY.

Where is this product manufactured?

This product is manufactured in Jinjiang, Fujian, China.

What certifications does this product have?

This product has API, CCC, SONCAP, GOST, ISO, CE, SGS, and IAF certifications.

What is the minimum order quantity for this product?

The minimum order quantity for this product is 1 set.

Is the price of this product negotiable?

Yes, the price of this product is negotiable.

How is this product packaged for transportation?

This product is packaged in plastic and suitable for sea transportation.

What is the expected delivery time for this product?

The expected delivery time for this product is 1 month.

What are the available payment terms for this product?

The available payment terms for this product are L/C, T/T, D/P, , Paypal, , and others.

What is the supply ability for this product?

The supply ability for this product is 1000 sets per year.
