Bridge Automatic Cutting Machine for Marble, Sintered Stone and
Quartz Stone
Key Specifications
| Attribute | Value |
|---|
| Power Supply | AC |
| Gross Weight | 5100kg |
| Worktable Rotating Angle | 0-90°/0-360° |
| Warranty | 1 Year |
| Gross Power | 20.5/24kw |
| Outline Dimension | 5650*4750*2650mm |
| Water Consumption | 3m3/H |
| Table Movement | Automatic |
| Max Processing Size | 3200*2000*80mm |
| Main Motor | 15kw |
| Worktable Tilting Angle | 0-85° |
Detailed Technical Parameters
| Parameter | Unit | ZDSC-400 |
|---|
| Blade diameter | mm | 300-400 |
| Max processing size | mm | 3200*2000*80 |
| Trolley size | mm | 3200*2000 |
| Worktable tilting angle | ° | 0-85 |
| Worktable rotating angle | ° | 0-90/0-360 |
| Main motor | kw | 15/18.5 |
| Gross power | kw | 20.5/24 |
| Water consumption | m3/H | 3 |
| Outline dimension | mm | 5650*4750*2650 |
| Gross weight | kg | 5100 (without Concrete Stand) |

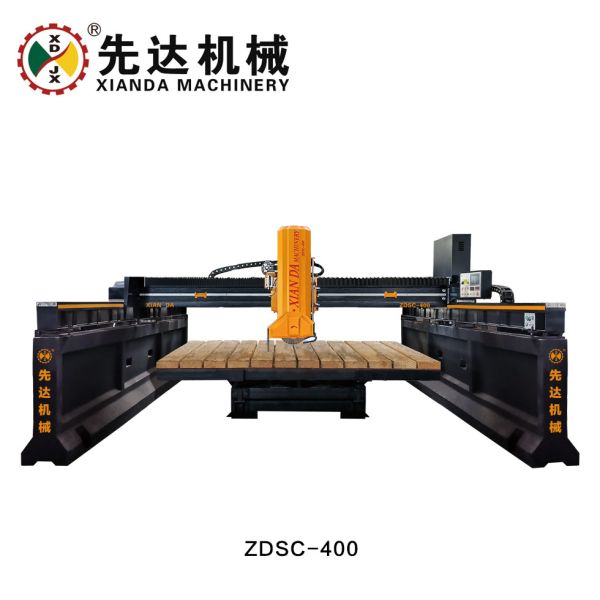

The Bridge Saw Cutting Machine is a precision CNC machine designed
for cutting stone materials. Featuring 20.5/24kw gross power,
automatic table movement, and robust 5100kg construction with AC
power supply, this machine delivers reliable performance for
professional stone cutting applications. Its precision engineering
ensures fast, accurate cuts while maintaining ease of operation.
Applications
XIANDA MACHINERY's ZDSC-400 model is certified by API, CCC, SONCAP,
GOST, ISO, CE, SGS and IAF. This high-performance CNC machine is
ideal for granite cutting, marble processing, and other stone
fabrication applications. With its high-precision cutting
capabilities and stable operation, it has become a preferred choice
in the stone processing industry.
Customization Options
Brand Name: XIANDA MACHINERY
Model Number: ZDSC-400
Place of Origin: Jinjiang, Fujian, China
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS, IAF
Minimum Order Quantity: 1 SET
Packaging: Plastic Package, Suitable for Sea Transportation
Delivery Time: 1 month
Payment Terms: L/C, T/T, D/P, , Paypal,
Supply Ability: 1000 Sets/Year
Key Features
- Precision marble cutting capability
- Robust bridge cutting mechanism
- Automatic table movement
- Adjustable worktable angles (0-85° tilting, 0-360° rotation)
- Large processing capacity (3200×2000×80mm)
Technical Support and Service
Our experienced technical team provides comprehensive support
including troubleshooting, repairs, parts supply, and operator
training programs. We ensure your Bridge Saw Cutting Machine
maintains optimal performance throughout its service life.
Packing and Shipping
Each machine is securely packaged in waterproof materials with
complete installation manuals. We conduct thorough pre-shipment
testing and offer multiple shipping options with tracking
information provided. Delivery times vary based on destination and
carrier selection.
Frequently Asked Questions
What is the Brand Name of the Bridge Saw Cutting Machine?
XIANDA MACHINERY
What is the Model Number?
ZDSC-400
Where is the machine manufactured?
Jinjiang, Fujian, China
What certifications does the machine have?
API, CCC, SONCAP, GOST, ISO, CE, SGS, IAF
What is the minimum order quantity?
1 SET
