High Precision Monoblock Bridge Saw Cutting Machine for Stone
Fabrication
Product Specifications
| Attribute | Value |
|---|
| Warranty | 1 Year |
| Gross Weight | 5100kg |
| Water Consumption | 15m³/H |
| Blade Diameter | 2200-2800mm |
| Table Movement | Automatic |
| Power Supply | AC |
| Outline Dimension | 8000×4800×3700mm |
| Safety System | Available |
Technical Parameters
| Parameter | Unit | ZDCM-400-A | ZDCM-400-B |
|---|
| Control system type | / | PLC | PLC |
| Blade diameter | mm | 300-400 | 300-400 |
| Worktable size | mm | 3200×2000 | 3200×2000 |
| Max processing size | mm | 3200×2000×80 | 3200×2000×80 |
| Worktable tilting degree | ° | 0-85° | 0-85° |
| Cutting head rotation degree | ° | 0-90° | 0-90° |
| Cutting head rotation control mode | / | Stepper motor control | Servo motor control |
| Cutting head chamfer rotating degree | ° | 0-45° | 0-45° |
| Main motor power | kw | 15 | 15 |
| Outline dimension | mm | 5000×3100×2600 | 5000×3100×2600 |
| Water consumption | m³/h | 3 | 3 |
The Bridge Cutting Machine is built to withstand heavy use and
harsh working conditions. Its durable design and high-quality
materials make it a reliable and long-lasting cutting machine,
providing excellent value for industrial stone fabrication.
Applications
The Bridge Saw Cutting Machine, also known as Stone Cutting
Machine, Marble Cutting Machine, Granite Cutting Machine, or
Diamond Cutting Machine, is widely used in the stone processing
industry. It is mainly used for cutting and shaping of natural and
artificial stone materials, including granite, marble, limestone,
and sandstone.

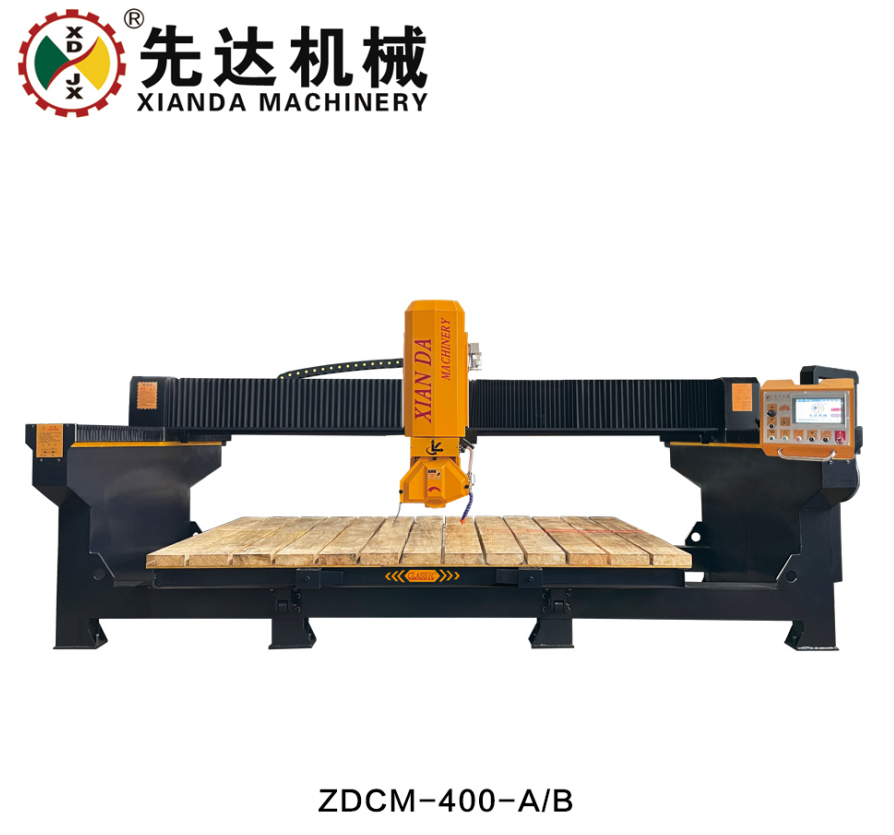

Product Details
- Brand Name: XIANDA MACHINERY
- Model Number: ZDCM-400-A/B
- Place of Origin: Jinjiang, Fujian, China
- Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS, IAF
- Minimum Order Quantity: 1 SET
- Packaging: Plastic Package, Suitable for Sea Transportation
- Delivery Time: 1 month
- Payment Terms: L/C, T/T, D/P, , Paypal,
- Supply Ability: 1000 Sets/Year
Customization
Our Bridge Saw Cutting Machine is the perfect CNC machine for
cutting and shaping stones such as granite and marble. With our
customized service, you can expect top-notch quality and efficiency
in your cutting process.
Key Features
- High-precision cutting for precise and clean results
- Automatic table movement for convenience and ease of use
- Certified with multiple international standards for quality
assurance
- Flexible payment terms to accommodate various business needs
- 1 month delivery time to ensure timely project completion
- Packaging designed for safe transportation via sea
- AC power supply for efficient and reliable operation
- Customizable to suit specific requirements
Packing and Shipping
Our Bridge Saw Cutting Machine is carefully packaged to ensure safe
delivery. Each machine is wrapped in protective materials and
placed in sturdy wooden crates for added protection during
transport. Our experienced shipping partners handle the machinery
with care to ensure timely and safe delivery to your location.
Frequently Asked Questions
Q: What is the brand name of this product?
A: The brand name is XIANDA MACHINERY
Q: Where is this product manufactured?
A: Manufactured in Jinjiang, Fujian, China
Q: What certifications does this product have?
A: Certified by API, CCC, SONCAP, GOST, ISO, CE, SGS, and IAF
Q: What is the minimum order quantity?
A: Minimum order quantity is 1 set
Q: Is the price negotiable?
A: Yes, the price is negotiable
Q: How is this product packaged?
A: Packaged in plastic for safe sea transportation
Q: What is the estimated delivery time?
A: Estimated delivery time is 1 month
Q: What payment terms are available?
A: L/C, T/T, D/P, , Paypal, , and others
Q: How many sets can be supplied annually?
A: Up to 1000 sets per year
