High Cutting Speed CNC Linear Profiling Machine for Square
Balusters
Key Specifications
| Attribute | Value |
|---|
| Blade diameter | 350-600mm |
| Max lifting travel of cutting frame | 600mm |
| Trolley size | 1300*3000mm/1400*3500mm |
| Main motor | 15kw |
| Gross power | 18.5kw |
| Cutting Accuracy | High |
| Max Cutting Diameter | 2500mm |
| Max Cutting Height | 1150mm |
| Max Cutting Depth | 150mm |
| Operation Mode | Automatic |
| Safety Protection | High |
| Model No | LCMM-1300/1800 |
Technical Parameters
| Parameter | Unit | DNFX-1300/CNFX-1300 | DNFX-1400/CNFX-1400 |
|---|
| Blade diameter | mm | 350-600 | 350-600 |
| Max lifting travel of cutting frame | mm | 600 | 600 |
| Trolley size | mm | 1300*3000 | 1400*3500 |
| Main motor | kw | 15 | 15 |
| Gross power | kw | 18.5 | 18.5 |
| Outline dimension | mm | 5500*2300*2300 | 6000*2400*2300 |
| Gross weight | kg | 4000 | 4500 |
| Water consumption | m³/h | 6 | 6 |
Product Overview
This advanced CNC linear profiling machine features a PLC/CNC
system with double blades, designed for precision profiling of
linear shapes and cutting square balusters. With an optional
rotating table, it can also handle curved linear cutting. Its
user-friendly operation makes it particularly suitable for new
operators while maintaining professional-grade performance.
Applications
- Cutting and shaping stone and marble materials with high precision
- Creating intricate designs and patterns on stone surfaces

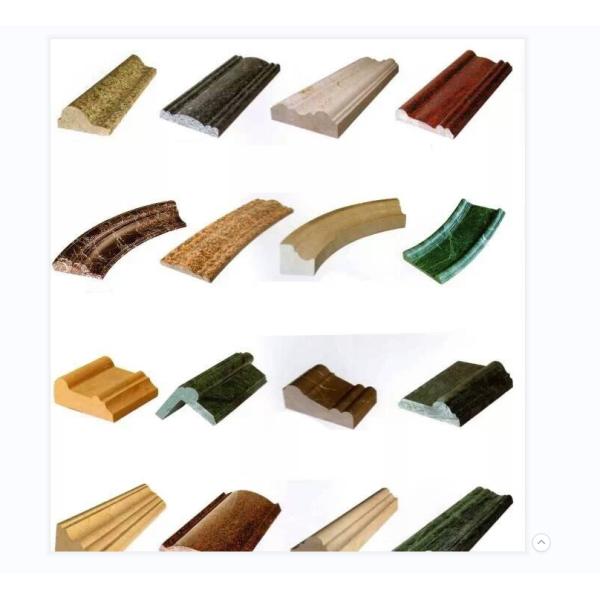

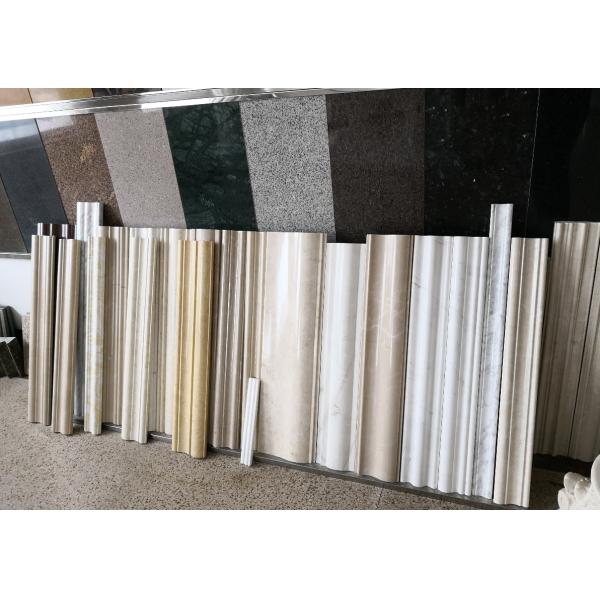

- Producing architectural elements like columns, pillars, and
balusters
- Manufacturing customized stone products including countertops and
vanity tops
- Carving and engraving decorative elements on stone surfaces
Customization Options
Brand Name: XIANDA MACHINERY
Model Number: Dnfx-1300/1400 Cnfx-1300/1400
Place of Origin: Jinjiang, Fujian, China
Certifications: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Minimum Order Quantity: 1 SET
Delivery Time: 1 month
Supply Ability: 1000 Sets/Year

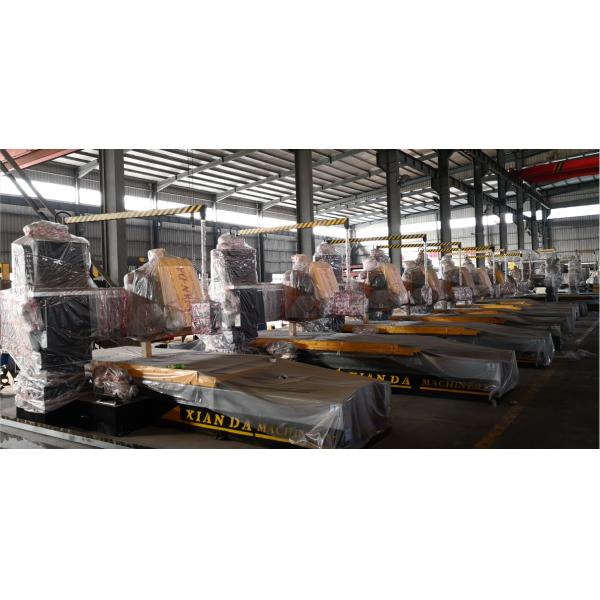

Packaging & Shipping
The machine is securely packaged in sturdy wooden cases with
protective materials to prevent damage during transit.
International shipments are available via sea or air freight, with
all customs documentation handled by our team. Domestic orders are
shipped via reliable courier services with tracking provided.
Frequently Asked Questions
What is the brand name of this product?
The brand name of this product is XIANDA MACHINERY.
Where is this product manufactured?
This product is manufactured in Jinjiang, Fujian, China.
What certifications does this product have?
This product has the following certifications: API, CCC, SONCAP,
GOST, ISO, CE, SGS;IAF.
What is the minimum order quantity?
The minimum order quantity for this product is 1 SET.
What are the payment terms?
Payment terms include L/C, T/T, D/P, , Paypal, , and others.
