High Temperature Tensile Testing Machine Universal Testing Machine 0.4KVA

Categories	Tensile Testing Machine
Brand Name:	ZL
Model Number:	ZL-8001C
Certification:	CE,ISO
Place of Origin:	China
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets
Delivery Time:	5-8 work days
Packaging Details:	High Temperature Tensile Testing Machine Universal Testing Machine Tensile Test is packaged within wooden case.
Product name:	High Temperature Tensile Testing Machine Universal Testing Machine Tensile Test
Model:	ZL-8001C
Capacityoption(KG):	2000,1000,500 ,200
Unit Selection:	N, KN
Test Speed Range:	0.001~500 mm/min stepless speed regulation
Power Servo Motor:	Taiwan TECO servo motor (Panasonic servo motor optional) & Servo Drive Controller
Power Consumption:	0.4KVA
Power Supply:	1ø, 220 VAC, 50/60 Hz
Host Volume:	86x60x210 cm(WDH)

Contact Now

Add to Cart

Company Info.

Dongguan Zhongli Instrument Technology Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

High Temperature Tensile Testing Machine Universal Testing Machine 0.4KVA

High Temperature Tensile Testing Machine

The High Temperature Universal Testing Machine is a precision physical performance testing instrument designed for applications in physics, engineering, and technical sciences. This computer-controlled system provides comprehensive mechanical testing capabilities for a wide range of materials.

Download Technical Specifications (PDF)

Applications & Capabilities

Widely used for rubber, plastic, wires, cables, textiles, and non-metallic materials
Testing of waterproof materials, non-woven fabrics, metal wires, foils, and sheets
Mechanical performance testing of metal bars and various finished products
Comprehensive testing including elongation, compression, peeling, shearing, tearing, and bending
Multiple document printing and graphical output comparisons
Modular design with extensive accessory options for flexible configuration

Advanced Testing Functions

This machine supports sophisticated testing protocols including constant stress, constant strain, creep, relaxation, axial, radial, and multiple dead cycle tests. Automatic calculations according to GB, JIS, ASTM, DIN standards for parameters such as tensile strength, yield strength, elongation, constant elongation stress, constant stress elongation, and elastic modulus.

Technical Specifications

Parameter	Specification
Capacity Options	2000KG, 1000KG, 500KG, 200KG
Test Accuracy	0.5 level, test force indication accuracy better than ±0.5%
Load Sensing	High-precision tension and pressure sensors (multiple sensors optional)
High Resolution	1/500000
Magnification	24-bit AD non-segment amplification
Unit Selection	N, KN
Test Speed Range	0.001~500 mm/min stepless speed regulation
Speed Control Accuracy	±0.5%
Displacement Resolution	0.001mm
Test Effective Width	Standard: 400 mm (customizable)
Test Stroke (Including Fixture)	Standard: 800 mm (customizable)

High Temperature Tensile Testing Machine front view

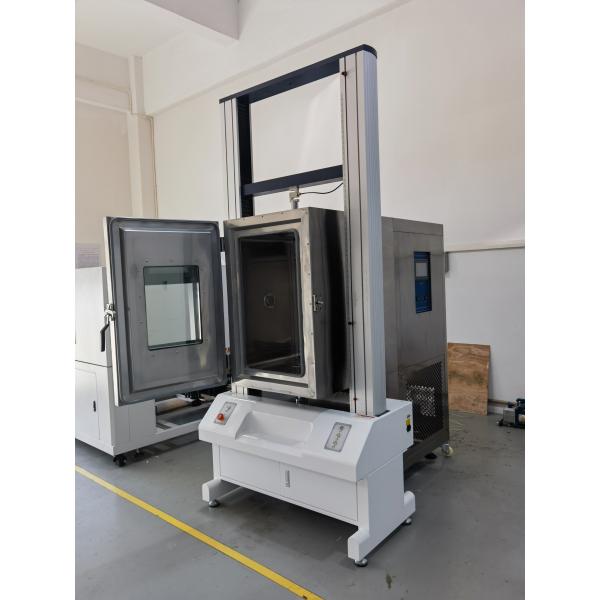

High Temperature Tensile Testing Machine operational view
