RS-232 Control 850nm Latching Mechanical Optical Switch Module for Fiber Optic Networks

Categories Fiber Optical Switches
Brand Name: GEZHI or OEM
Model Number: GZ-FSW-1x2-XM-FA
Certification: CE RoHS,ISO9001
Place of Origin: China
MOQ: 1pc
Price: US$69-US$150
Payment Terms: T/T,Western Union
Supply Ability: 5000pcs per month
Packaging Details: Paper box
Product Name: 1x2 Mechanical Optical Switch Module
Wavelength: 850nm
Fiber Type: Multimode
Connector: FC/APC
Control Type: Latching
Control Mode: RS-232
Package: Module
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

RS-232 Control 850nm Latching Mechanical Optical Switch Module for Fiber Optic Networks

RS-232 Control 1x2 Mechanical Optical Switch Module
850nm Latching Optic Switches for reliable fiber optic path control and monitoring
Product Overview
The Gezhi 1x2 mechanical optical switch module is a precision light path control device designed for multi-channel fiber optic switching applications. This module enables efficient routing in optical fiber transmission systems, supporting multi-channel monitoring, source/detector selection, and optical path protection. Ideal for testing systems, cable verification, and multi-point optical sensor monitoring.
Control & Operation
The module features dual control methods via front-panel buttons and RS-232 interface, with optical path selection available through host computer software for flexible system integration.
Applications
  • Wavelength routing systems
  • Reconfigurable add/drop multiplexers
  • Optical network monitoring and testing
Key Features
  • Broad wavelength range compatibility
  • Low insertion loss for minimal signal degradation
  • Epoxy-free optical path design
  • High stability and reliability
  • Dual control via buttons and RS-232 interface

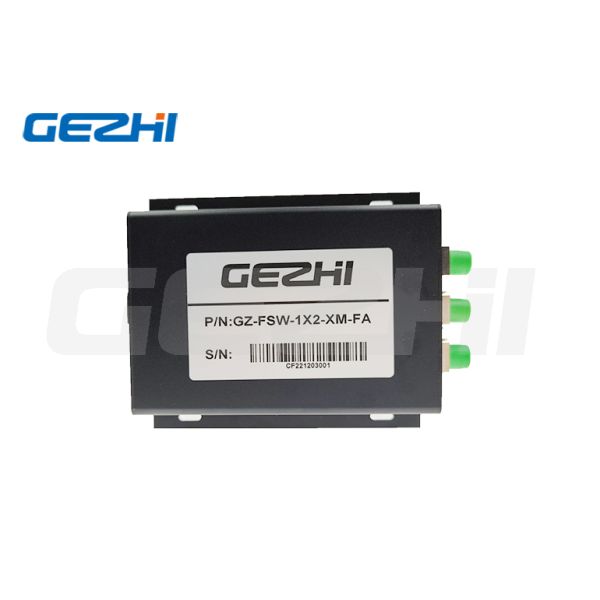

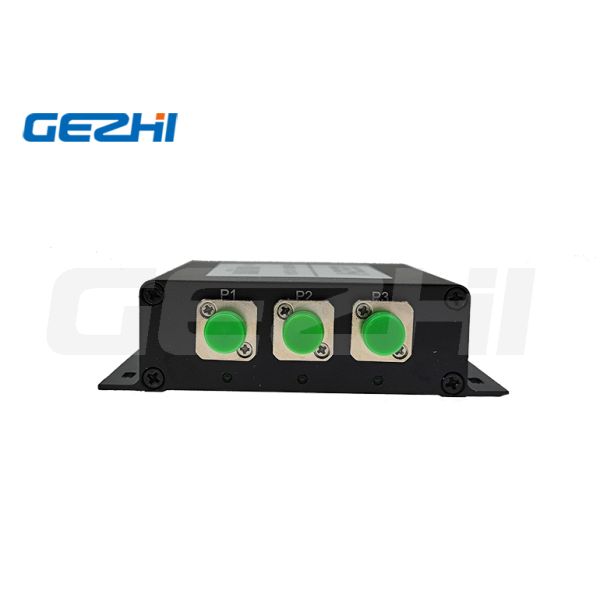

RS-232 Control 1x2 Mechanical Optical Switch Module front view RS-232 Control 1x2 Mechanical Optical Switch Module technical diagram
Technical Specifications
ParameterUnitGZ-FSW-1x2
Wavelength Rangenm532~1064nm | 1260~1650
Operating Wavelengthnm532/650/780/850/980 nm | 1310/1490/1550/1625 nm
Insertion LossdBTyp:0.8 Max:1.2 | Typ:0.6 Max:0.8
Return LossdBMM≥30 SM≥50
CrosstalkdBMM≥35 SM≥55
PDLdB≤0.05
WDLdB≤0.25
TDLdB≤0.25
RepeatabilitydB≤±0.02
Power Supplyv5V / 500mA
Control Mode/Button, RS232
Lifetimetimes≥107
Switch Timems≤8
Transmission PowermW≤500
Operating Temperature-20~+70
Storage Temperature-40~+85
Weightg16
Dimensionmm(L)104.0*(W)120.0*(H)28
Ordering Information
GZ-FSW-1x2-x-xx-x-x-xx
ModeWavelengthControl ModelFiber TypeConnector
S=SM M=MM85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=OthersL=Latching N=Non-Latching5=50/125 6=62.5/125 9=9/125 X=OthersFP=FC/PC FA=FC/APC X:Others
