MIC24121-5308W-LF3 Integrated RJ45 Connector Surface Mount

MIC24121-5308W-LF3 is a 10/100BASE-T SMT RJ45 connector with integrated magnetics, 2250V isolation, 350µH OCL, –40 to +85°C.

Key Features of MIC24121-5308W-LF3 SMT Magjack

• SMT RJ45 Connector with integrated magnetics
• Supports 10/100BASE-T Fast Ethernet
• Single-port (1×1) RJ45 configuration
• 1:1 turns ratio (±2%) for PHY compatibility
• High open circuit inductance: 350 µH min.
• High isolation voltage: 2250 VDC
• Excellent return loss, crosstalk, and common-mode rejection
• Surface-mount, reflow soldering compatible
• Wide operating temperature: –40 °C to +85 °C

Electrical Specifications (@ 25 °C unless otherwise noted)

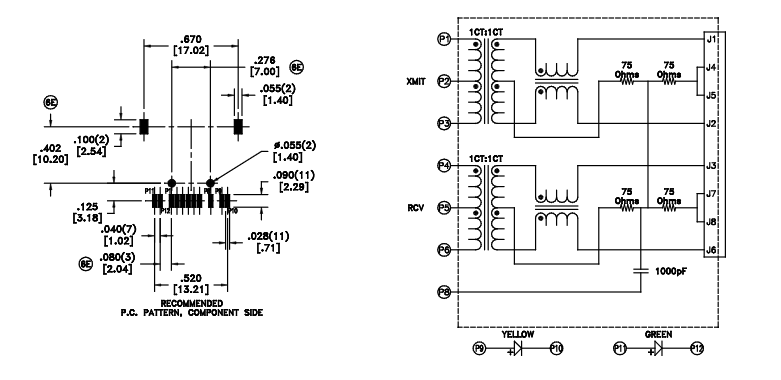

Fast Ethernet SMT RJ45 MIC24121-5308W-LF3 Drawing:

Compliance & Reliability of 10/100BASE-T SMT RJ45

• Designed in accordance with IEEE 802.3 Fast Ethernet requirements
• Suitable for lead-free SMT assembly processes
• Industrial-grade temperature performance
• Proven solution used in Ethernet magnetic modules and magjack designs

Design Notes for SMT RJ45 Connector Applications

MIC24121-5308W-LF3 integrates Ethernet magnetics directly inside the RJ45 connector housing, allowing designers to eliminate discrete transformer components.

This improves signal integrity, reduces EMI, and simplifies PCB routing in high-density layouts.
The high isolation voltage and strong common-mode rejection make it suitable for industrial Ethernet environments.

Typical Applications

1. SMT RJ45 connectors for Ethernet ports
2. Fast Ethernet LAN interfaces (10/100 Mbps)
3. Embedded systems and industrial controllers
4. Network switches, routers, gateways
5. IoT devices and communication equipment
6. Consumer and industrial Ethernet products
