Automatic Silk Screen Printing Machine For Bucket

Automatic Silk Screen Printing Machine For Bucket
Technical specifications:
1:Maximum Printing Area 900mm×250mm
2:Maximum Screen Frame Size 1200mm×400mm
3:Min. and max. diameters of cylindrical container Ø150mm~Ø350mm
4:Min. and max. length of container 200mm~400mm
5:Max. production speed 1000pcs/hr
6:Power Requirement 380V 3phase 50Hz 20KW
7:Compressed Air Pressure Requirement 5~8bar
8:Weight 2500KG
9:Machine Dimension(L×W×H) 12000mm×2500mm×1800mm

Features:
1: This machine is specially designed for large diameter plastic containers in cylindrical and conical shape, it is applicant primarily for buckets, barrels, pails, chemical drums' surface printing.
2: It is integrated with varies functions such as automatic loading and unloading system, 4 sets of flaming treatment, auto orientation, automatic multi color overprint toolings, UV curing system etc.
3: Independent control printing for each color station, mechanical synchronous drive, micro computer control, accurate overprint to ensure machine's working stability and reliability.
4: PLC Control Panel and screen touching combined with brand-name mechnical transferring, driving, combined with kinds of monitor system to ensure the machine running stability at high speed.
5: Machine could be combined with from 1 to 8 colors.
6: We can customize machine according to the special size of your items.

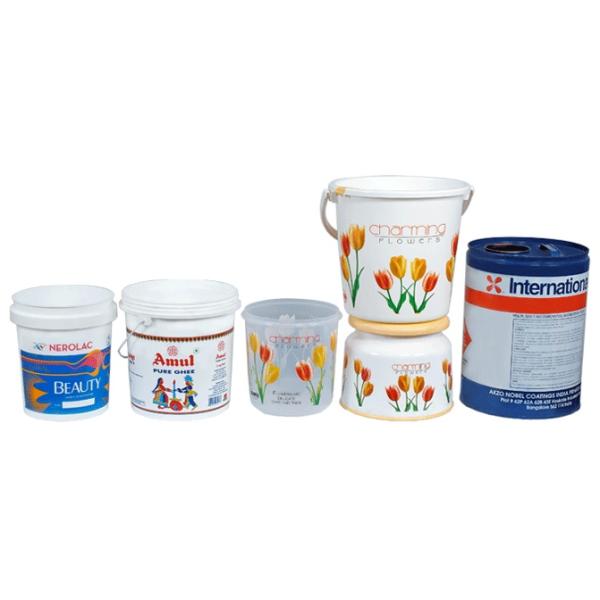

Prinitng Samples:

LC Printing Machine Factory Limited is leading professional manufacturer which integrates research, development, production, marketing, trade and e-commerce. Our products include Hot Stamping Machine, Screen Printing Machine, Pad Printing Machine, Heat Transfer Machine, Heat Press Machine, Flame Treatment Machine, UV Curing Machine, Plate Making Equipment and its other relevant peripheral equipments. With its more than two decades of hard working throughout our teamwork,the export volume has increasing 60 million R.M.B. and it is still keep increasing rapidly at present! The products has been exported to more than forty countries such as America, Lithuania, Romania, Canada, U.A.E., South Africa, Turkey, Saudi Arabia, Russia, Spain, Egypt, Bangladesh Middle-east Country etc.

LC Printing Machine Factory Limited is devoted to be the dominating printing machine exporter. We have professional technical department who are paying the key role on pre-sales and after-sales services. They provide the most up-to-the minute technology total solution for different printing process and requirements which are the value-added asset to our customers. Nowadays, she also has expended her line successfully to be the professional Printer. Through best utilize of its own printing facility, we provide worldwide customer the pad printing, screen printing, hot stamping, heat transfer, water transfer processing services.

With the globalization and development of internet,LC Printing Machine Factory Limited is positioning as a integrating expert in the special printing sector, a professional manufacturer for pad printing machine, screen printing machine and Hot Stamping Machine. Moreover, we are expanding the business spectrum, covering machinery designing, manufacturing and intl trade as well. We built the solid tie with distinguished forwarder and trade partner across the globe. With different industrial players are integrated into our service chain, our business and service are taping into plastic, ink, UV cure and material imaging industry as well.
