Wallpack/Area/shoebox/canopy/flood light LED Retrofit 40W

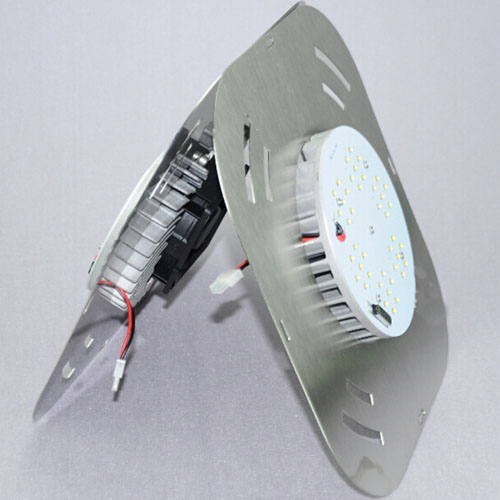

Specially designed for indoor and outdoor lighting, LB2075 LED Module can retrofit all the conventional light fixtures to LED lighting. Equipped with the CREE LED , Mean-well driver, Sunon fan,thermal pro ector, it easily outperforms conventional flight source.

Benefits

Directly replacing HPS/MHD light source

Utilizing same lighting fixture , saving investment cost

Oval, easy to install and replace

Latest LED technology

Excellent Thermal Management

Over temperature protection

One Size more Wattages

Easy to install and connect

Suitable for all the traditional light fixtures

Application

Area Light/Shoesbox Light

Wall Pack Light

Canopy Light/Garage Light/Ceiling Light

Flood Light/Pole Light

High/Low Bay Light

Roadway Light/Street Light

Billboard Light

Sports Light

Post Top Light

Specications:

model:LBRK-E60/80/100/120
E60H/100H (High voltage)
Driver:MeanwellLPFHLGHVG
Light source: Cree LED-XBD
Voltage:100-277 V AC/ 50-60 Hz
347-480 VAC / 50-60 Hz
Power: 60-120 W
Dimming: 0-10VDC,PWM, or Resistance
Luminous flux : 5400 up to 12500 lm (CW)
Optic: 7 in 1 lens with 15/30/45/60/120 DEG
Luminaire efficacy: 90 up to 100 lm/W
Optical cover:PET Cover, PMA Lens
Correlated Color Temperature: 5500 K (Cool white)
4200 K (Neutral white)
Material: Heatsink: Aluminum (ADC12)
Yoke/Plate: Stainless steel(SUS304)
Color Rendering Index: 70
Color: Silver
Maintenance of lumen output-Lm80:100,000 hours at 25 ºC
Installation: Yoke mounted or Plate mounted
Minimum15spacebehindxture
Operating temperature range: 25 to +85 ºC
Accessories: Yoke / Plate install kit /E26/39 Adaptor
Ledil Lens/ WAGO Connector
