Galvanized Heavy Load Type Steel Grating with Electroforged Flat Bar Press Locked Design

Categories Pressure Locked Steel Grating
Model Number: Galvanized flat bar grating
Certification: ISO9001
MOQ: 50 pieces
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000t per month
Delivery Time: 4-7 work days
Packaging Details: Pallets and customers request
Brand Name: GNEE
Product name: Silver Electroforge Flat Bar Press Locked Metal Grating Grates Galvanized
Pressure locked type: Common type , integrated type , sunshade type , heavy load type
End plate type: Untreated,common banded end , high banded end , special banded ends
Bar pitch: 20,25,30,32.5,34.3,40,50,60,62,65mm
Material: Stainless steel/mild steel,Q235,stainless304/316,low carbon steel
Color: Sliver,black or painted
Application: Petroleum and chemical, port, power, transportation, papermaking, medicine, steel and iron, food, municipality, real estate, manufacturing
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Galvanized Heavy Load Type Steel Grating with Electroforged Flat Bar Press Locked Design

Pressure Locked Metal Galvanised Grating Silver Electroforged Flat Bar

Silver Electroforge Flat Bar Press Locked Metal Grating Grates Galvanized

The press locked welded steel grating, requested by customers, is manufactured using load flat steel bars placed horizontally and vertically at equal pitch intervals. The welding process utilizes 200-ton hydraulic resistance automatic welding equipment, followed by cutting, punching, and banding ends.

Product Specifications
Product NameSteel grating
MaterialLow carbon steel / Stainless steel
GradeCN: Q235, Q345, USA: A36, UK: 43A
StandardCN: YB/T4001-1998, USA: ANSI/NAAMM, UK: BS4592-1987, AUS1657-1988, JJS
CertificationCE, GOST, ISO9001, ISO14001, HSE
Bearing bar size20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8, 100X8mm, etc
Bearing bar pitch20, 25, 30, 32.5, 34.3, 40, 50, 60, 62, 65mm
Bearing bar typePlain, Serrated (tooth-like), I bar (I section), Serrated-I
Cross bar size5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm (round bar)
Cross bar pitch40, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc.
Panel size3x20ft, 3x24ft, 3x30ft, 5800x1000, 6096x1000, 6400x1000, as requested
Surface treatmentUntreated, hot DIP galvanized, cold DIP galvanized, painted, powder coated, pickling, electrolytic polishing, or as customers' requirement
Galvanization StandardCN: GB/T13912, USA: ASTM (A123), UK: BS729
ColorSilver/Black
ApplicationPetroleum and chemical, port, power, transportation, papermaking, medicine, steel and iron, food, municipality, real estate, manufacturing
Steel grating product illustration showing structural details and dimensions
Quality Standards
Standard for steel gridStandard for steel materialStandard for hot dipped galvanization
China: YB / T4001.1 - 2007GB700 - 88GB / T 13912 - 2002
USA: ASNI / NAAMM ( MBG531 - 88 )ASTM ( A36 )ASTM ( A123 )
UK: BS4592 - 1 - 1995BS4360 ( 43A )BS729
Australia: AS1657 - 1992AS3679AS1650

We have nearly 10 years of experience in manufacturing high quality Steel Grating with various sizes. We can supply plain Type-S, Type-I, cross or composite grating according to customers' requirements. The products enjoy features of high strength, light structure, high bearing capacity, and convenience for loading and other properties.

We warmly welcome friends from all corners of the world both at home and abroad to patronize us. We wish us cooperate successfully and create the brilliant future together!

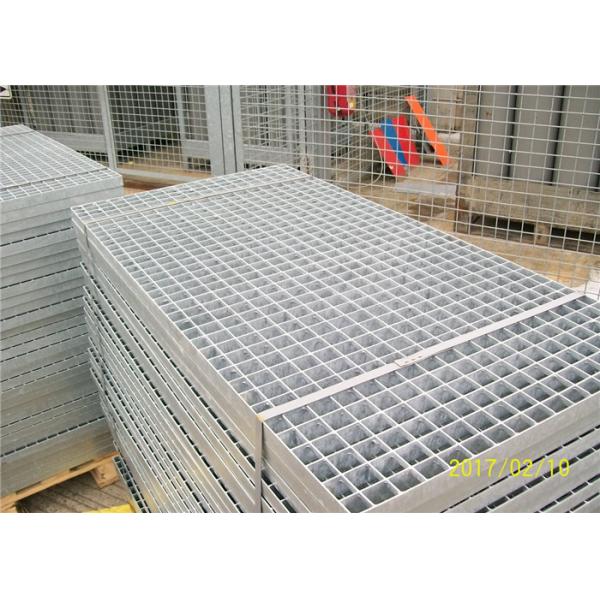

Manufacturing facility and steel grating production process
Product Characteristics
  • High strength and light structure
  • Powerful anti-corrosion, durable and long working life
  • Beautiful appearance, bright surface
  • No dirt-rain-snow deposit, automatic cleaning, easy maintenance
  • Good ventilation, day-lighting, heat-dispersing, resistant to sliding and explosion
  • Easy installation and disassembly
Applications

They are widely used for platforms, trestles, covers, ladders and fencing in many fields such as petroleum and chemical industry, electric power, water supply, sweat treatment, ship building, parking lots, city construction, and environmental engineering.
