| Categories | Thermocouple Bare Wire |
|---|---|
| Brand Name: | Tankii Alloy |
| Model Number: | KX / KPCA |
| Certification: | ISO9001 |
| Place of Origin: | China Mainland |
| MOQ: | 10kg |
| Price: | Negotiation |
| Payment Terms: | T/T, Paypal, Western Union, , |
| Supply Ability: | 1000Ton per year |
| Delivery Time: | 5-7 days |
| Packaging Details: | Standard exoprt package |
| Material: | Chromel alumel |
| Surface: | Bright / Oxidized |
| Diameter: | 0.41mm |
| Strands: | 19 |
| Section area: | 2.5 mm2 |
| Wire Type: | Stranded soft wire |
| Insulation: | Available |
| Wire class: | I , II, III |
| Leading time: | 10 days after getting the payment |
| Item: | K Type Stranded Thermocouple Bare Wire 0.41mm For Thermocouple Extension Cable |
| Company Info. |
| Shanghai Tankii Alloy Material Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

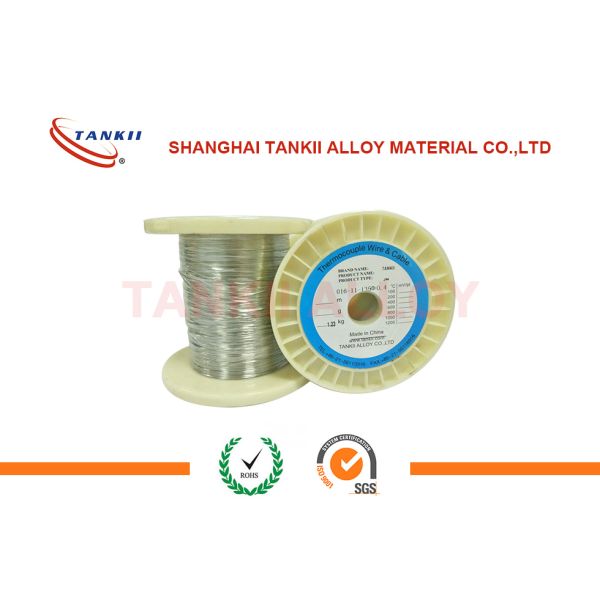

K Type Stranded Thermocouple Bare Wire 0.41mm For Thermocouple Extension Cable
Quick Description
A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.
The thermocouple strips / ribbon wires with different varieties and specifications of our company can be applied in all kinds of thermocouples, the temperature ranges from -270℃ to 1800℃.
The thermocouple strips / wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.
Our products conform to the standards of IEC584 -1and IEC-2.
Thermocouple type and index | Measurement Range ℃ | |
Type | Index | |
PtRh30-PtRh6 | B | 600~1700 |
PtRh13-Pt | R | 0~1600 |
PtRh10-Pt | S | 0~1600 |
NiCr-NiSi | K | -200~1300 |
NiCr-CuNi (constantan) | E | -200~900 |
Fe-CuNi (constantan) | J | -40~750 |
Cu-CuNi (constantan) | T | -200~350 |
NiCrSi-NiSi | N | -200~1300 |

|
