1250MM Width 15m/min Speed PPGI/GI Material Double Layer Roll Forming Machine for Trapezoidal Sheets

Categories Double Layer Roll Forming Machine
Brand Name: HC
Model Number: HC30-28-1000
Certification: CE
Place of Origin: China
MOQ: 1Set
Payment Terms: L/C,T/T
Supply Ability: 20 Sets/Month
Delivery Time: 25-30Days
Packaging Details: Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Material Type: PPGI/GI
Material Thickness: 0.3-0.6mm
Material Width: 1000mm
Roller Stations: Upper:11stations ; Down:12stations
Roller & Shaft Material: 45# Steel Quenching and Plating
Diameter of Shaft: φ70mm
Cutter Material: Cr12
Drive Type: Chain Drive
Speed: 15m/min
Total Power: 5.5+5.5kw
Voltage: 380V 50Hz 3phases(Customizable)
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

1250MM Width 15m/min Speed PPGI/GI Material Double Layer Roll Forming Machine for Trapezoidal Sheets

Glazed Tile Trapezoidal Double Sheet Roll Forming Machine Width 1250MM
Main Technical Parameters
ParameterSpecification
Material TypePPGI/GI
Thickness0.3-0.6mm
Width1000mm
Roller StationsUpper: 11 Stations; Down: 12 Stations
Roller & Shaft Material45# Steel Quenching and Plating
Diameter of ShaftΦ70mm
Cutter MaterialCR12
Drive TypeChain Drive
Speed15m/min
Total Power5.5+5.5KW
Voltage380V 50Hz 3Phases (can be customized)
Component & Technical Parameters
5T Manual Decoiler

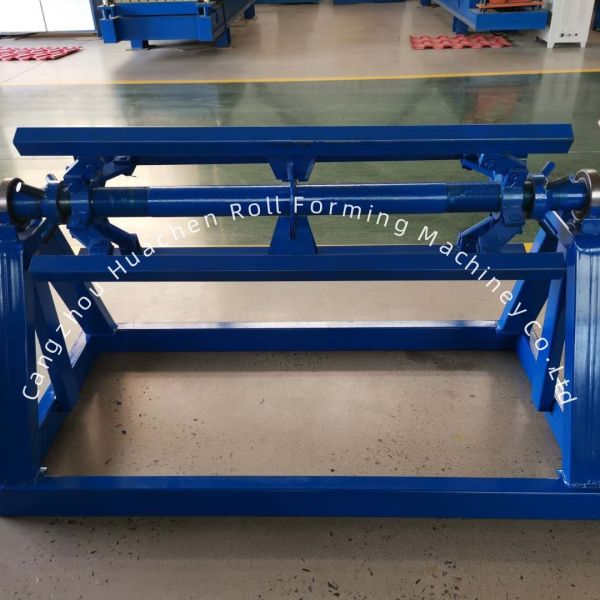

5T Manual Decoiler for roll forming machine

This part is used to support coil and make the coil in a rotary way.

  • Bearing capacity: 5T
  • Inner diameter: 470-530mm (adjustable according to demand)
  • Equipped with brake device to prevent machine damage from impact
Feeding Table & Pre-Cutter

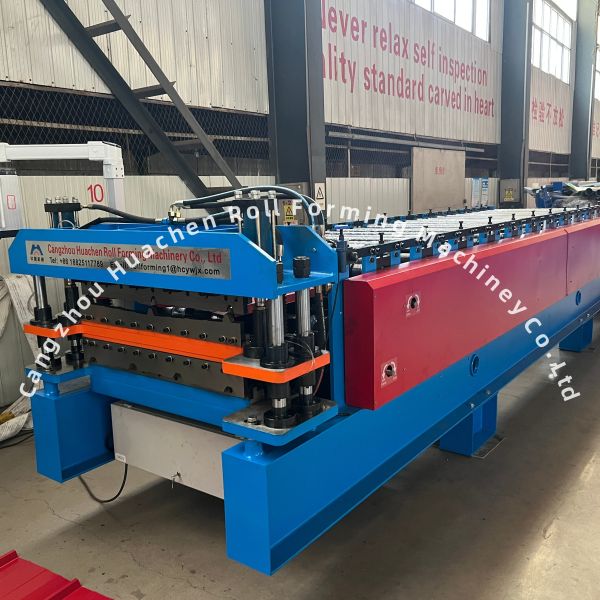

Feeding table and pre-cutter for roll forming machine

Guides the coil into correct position and directs it to the roll forming part. Includes a hand pull cutting device for convenient pre-cutting when changing color or thickness.

Shaft & Roller

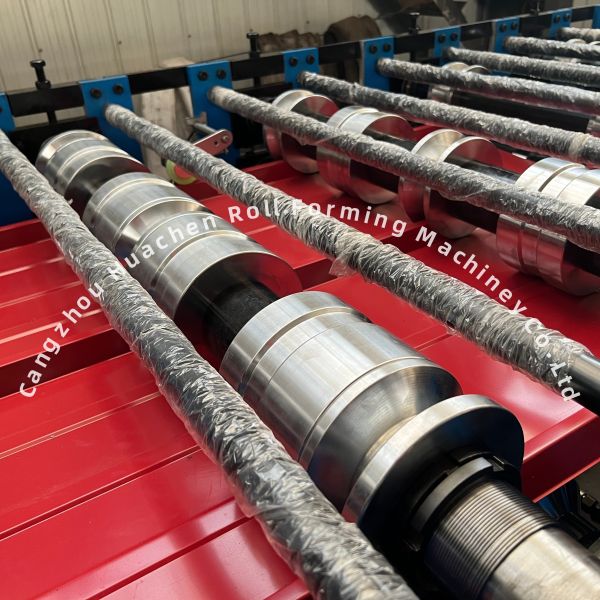

Shaft and roller components for roll forming machine

Material is 45# Steel Quenching and Plating. The processed rollers are smooth, hard and will not rust. Will not leave any scratches on the sheet when working.

Hydraulic Pump Station
Hydraulic pump station for roll forming machine

Drives the cutter to start cutting works. The hydraulic tank uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to ensure the oil pump station will not be affected by high oil temperature during working.

Solenoid valve brand: Huade

Touch Screen Control Cabinet

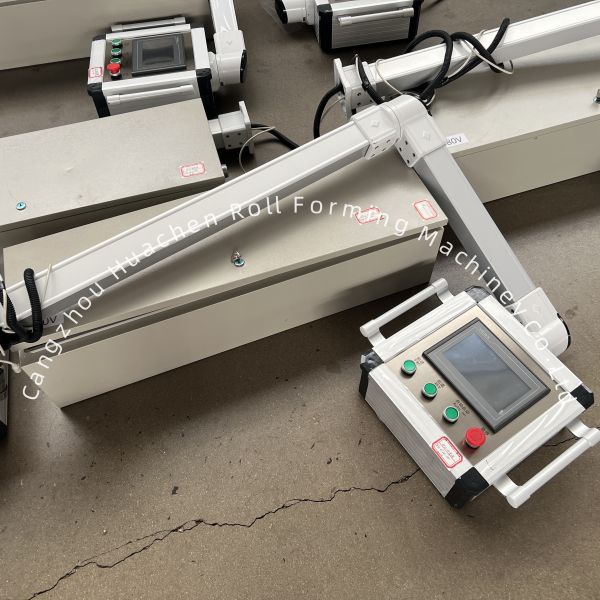

Touch screen control cabinet for roll forming machine

The control cabinet has two modes: automatic and manual. The unit length of the targeted sheet and quantity can be set in the touchscreen. The system is simple and easy to operate.

Electrical Component Brands:
  • VFD: Delta
  • Circuit breaker: Delixi
  • Contactor: Delixi
  • Relay: Xinling
  • PLC: Delta
  • Transformer: Delixi
Pressing Section & Cutter

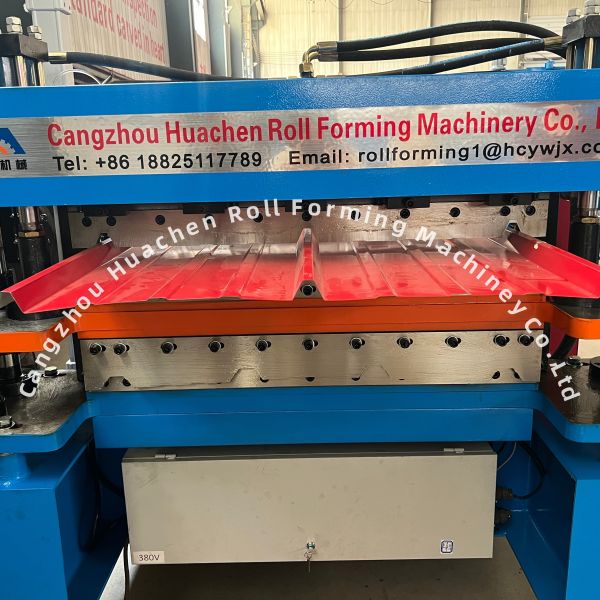

Pressing section and cutter for roll forming machine

The material of blade is CR12. With high strength, better hardenability and good wear resistance.

Output Table

This part is used to collect the formed products. The bracket is equipped with rollers to facilitate product forwarding without being scratched.

Spare Parts
PartQuantity
Chains2 Sets
Solenoid Valve1 Set
Travel Switch2 Sets
Open-End Wrenches2 Sets
Hexagon Wrench2 Sets
Counter1 Set
Wrench2 Sets
Oil Seals1 Set
Product Images

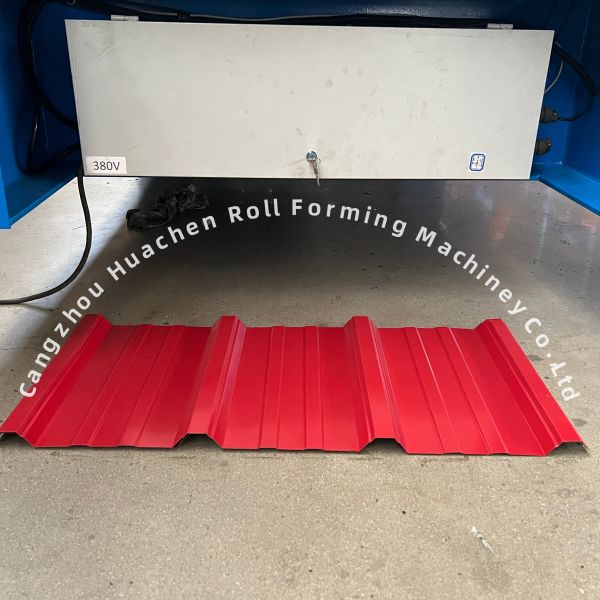

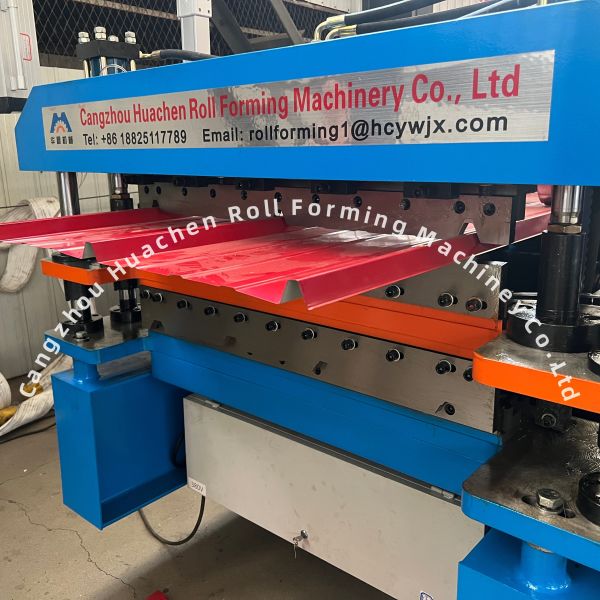

Glazed tile trapezoidal double sheet roll forming machine overview Glazed tile trapezoidal double sheet roll forming machine operation view
