| Categories | Gas Steam Boiler |
|---|---|
| Brand Name: | SWET |
| Model Number: | WNS6-1.25-Y、Q-3011 |
| Certification: | ISO9001 |
| Place of Origin: | Henan China |
| MOQ: | 1 Set/Sets |
| Price: | Negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram，Cash or on the basis of mutual agreement |
| Supply Ability: | 1500 Set/Sets Per Year |
| Delivery Time: | 25-30 work days |
| Packaging Details: | The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements |
| Rated evaporation: | 6 t / h |
| Rated working pressure: | 1.25/1.6 MPa |
| Rated steam temperature: | 194/204℃ |
| Testing efficiency: | 96.58 % |
| Gas consumption: | 433.51 Nm³/h |
| Color: | Based on customer's needs |
| Keywords: | gas steam boiler |
| Model: | WNS6-1.25-Y、Q-3011 |
| Company Info. |
| Henan Swet Boiler Co., Ltd. |
| View Contact Details |
| Product List |

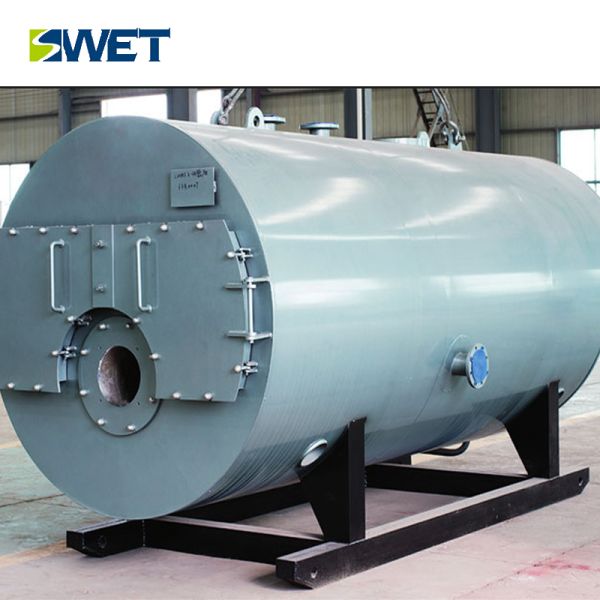

Product description
The series of gas steam boilers equipped with imported brand-name burners, according to different fuel selection of different burners, wide adaptability. Among them, Baltur's GI 1000 LXME MB burner was selected as the gas type
Product advantages
1. Gas steam boiler body resistance is small, stable operation, saving power consumption, low noise
2. Quick-mounted overall structure, small size, compact structure, easy installation
3. There is no smoke in the gas steam boiler discharge, the emission concentration of SO2 and NOx is extremely low, and the environmental benefits are remarkable
Specification
| WNS series of automatic gas (oil) steam energy-saving boiler product selection table | |||||||
| Model | Rated evaporation | Work pressure | Steam temperature | Feed water temperature | Air consumption | Test efficiency | Transport dimensions |
| Unit | t/h | MPa | ℃ | ℃ | Nm³/h | % | mm |
| WNS20-2.5-Q(Y) | 20 | 2.5 | 226 | 105 | 1407.5 | 97.62 | 8660x3520x4831 |
| WNS20-1.25(1.6)-Q(Y) | 20 | 1.25/1.6 | 194/204 | 105 | 1459 | 97.51 | 8870x3550x3750 |
| WNS15-1.0(1.25)(1.6)-Q(Y) | 15 | 1.0/1.25/1.6 | 184/194/204 | 105 | 1126 | 97.2 | 7450x3520x4090 |
| WNS10-1.25(1.6)-Q(Y) | 10 | 1.25/1.6 | 194/204 | 105 | 837.25 | 96.75 | 6370x2812x3514 |
| WNS8-1.25(1.6)-Q(Y) | 8 | 1.25/1.6 | 194/204 | 105 | 659.25 | 96.7 | 6000x2920x3430 |
| WNS6-1.25(1.6)-Q(Y) | 6 | 1.25/1.6 | 194/204 | 105 | 433.51 | 96.58 | 5470x2770x3195 |
| WNS5-1.25(1.6)-Q(Y) | 5 | 1.25/1.6 | 194/204 | 20 | 409.33 | 96.48 | 5160x2410x3015 |
|
