| Categories | Boiler Spare Parts |
|---|---|
| Brand Name: | SWET |
| Model Number: | LDR0.1 -0.7-3018 |
| Certification: | ISO9001 |
| Place of Origin: | Henan China |
| MOQ: | 1 Set/Sets |
| Price: | Negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement |
| Supply Ability: | 1500 Set/Sets Per Year |
| Delivery Time: | 25-30 work days |
| Packaging Details: | The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements |
| Rated evaporation: | 100 kg/h |
| input power: | 72 KW |
| Output current: | 113 A |
| Rated voltage: | 380 V |
| Model: | LDR0.1 -0.7-3018 |
| Dimensions Length × width × height: | 880×870 ×1300 mm |
| weight: | 280 Kg |
| Safetyvalve caliber: | 40 DN |
| Company Info. |
| Henan Swet Boiler Co., Ltd. |
| View Contact Details |
| Product List |

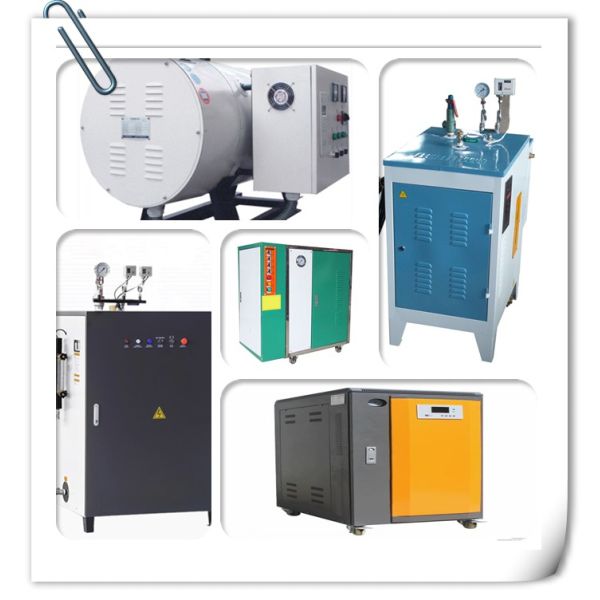

Product description
1. Electrical components are the core part of electric steam
boiler.
2. The components of purchased electric appliances adopted by this
product are both awarded "China Well-known Trademark", "China
Famous Brand" Products and "3C Compulsory Certification Products"
Product advantages
1. Small scientific design
2. Unique internal structure design
3. One-stop electronic control system
4. Use of electricity is more environmentally friendly and more
economical
Application
1. Oil, automobile
2. Steam cleaning industry
3. Hotels, dormitories, schools, mixing stations
4. Hot water supply, bridge, railway
5. Concrete conservation, (casual beauty club) sauna bath, heat
exchange equipment.
Product parameters
| model | LDR0.004 -0.4 | LDR0.013 -0.7 | LDR0.024 -0.7 | LDR0.035 -0.7 | LDR0.05 -0.7 | LDR0.08 -0.7 | LDR0.1 -0.7 | LDR0.15-0.7 | |
| project | unit | ||||||||
| Rated evaporation | Kg/h | 4 | 13 | 24 | 35 | 50 | 80 | 100 | 150 |
| Fixed work stress | Mpa | 0.4 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |
| input power | KW | 3 | 9 | 18 | 24 | 36 | 54 | 72 | 108 |
| Output current | A | 6 | 14 | 27 | 41 | 55 | 79 | 113 | 164 |
| Rated voltage | V | 220/380 | 380 | 380 | 220/380 | 220/380 | 380 | 380 | 380 |
| Intake pipe diameter | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
Main steam | DN | 15 | 15 | 15 | 15 | 15 | 15 | 20 | 25 |
| Safetyvalve caliber | DN | 15 | 15 | 15 | 15 | 15 | 15 | 40 | 25 |
Dimensions | mm | 680×520 ×850 | 750×550 ×920 | 850×600 ×1000 | 850×600 ×1000 | 900×650 ×1150 | 900×650 ×1200 | 880×870 ×1300 | 1010×740 ×1210 |
| weight | Kg | 50 | 79 | 92 | 118 | 132 | 150 | 280 | 160 |


|
