UPVC / PVC Pipe Extrusion Line Full Automatic Plastic Pipe Production Line

This fully automatic PVC/UPVC pipe extrusion line is designed for manufacturing various types of pipes including water supply, drainage, electrical conduit, and telecommunications line pipes.

Key Features

Energy-efficient conical twin-screw extruder with specially designed mold enables simultaneous two-piece PVC pipe extrusion
Clean cutting machine with independent variable frequency speed regulation and Hough clamping device for smooth, burr-free cuts
Incremental encoder ensures precise cutting length consistency while solving PVC chip dust pollution
Dual-character ink printing system reduces printing asset costs
Specialized twin-screw feeding device prevents powder bridging and material shortage
Intelligent distributed control system with automatic fault alarm and synchronized operation

System Components

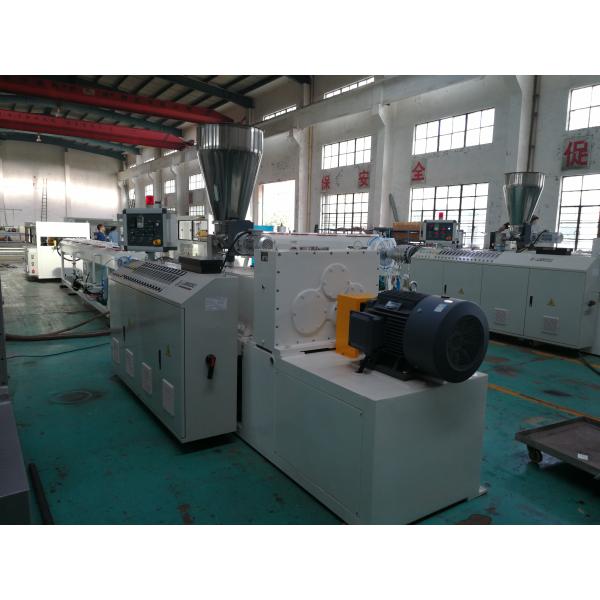

Extruder: Conical twin-screw design with optimized screw geometry for reduced plasticizing time and excellent compounding
Gearbox: High-quality gear box and reducer with stable operation, low noise, and extended service life
Temperature Control: Cast aluminum heaters with stainless steel covers and wind cooling system for precise temperature management
Screw & Barrel: Internal temperature control system with vacuum degassing to remove waste gases from raw materials
Drive System: AC motor with FUJI or ABB inverters for stable torque output and variable speed control

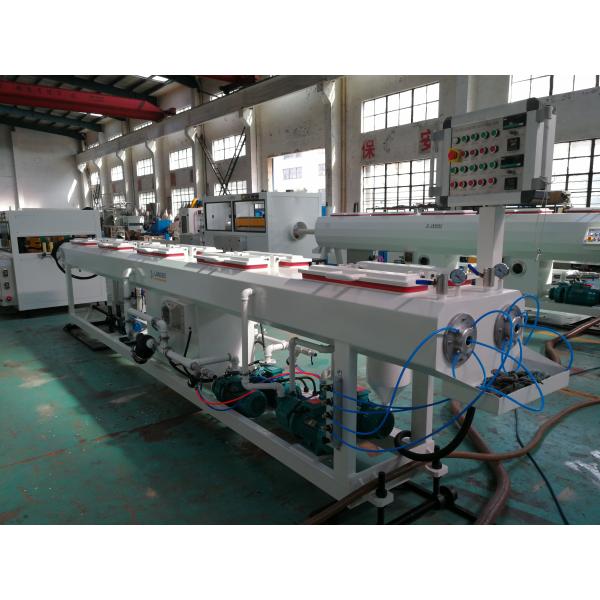

Vacuum Calibrating Tank: Dual vacuum chambers ensure perfect pipe roundness with spray water cooling and automatic water discharge

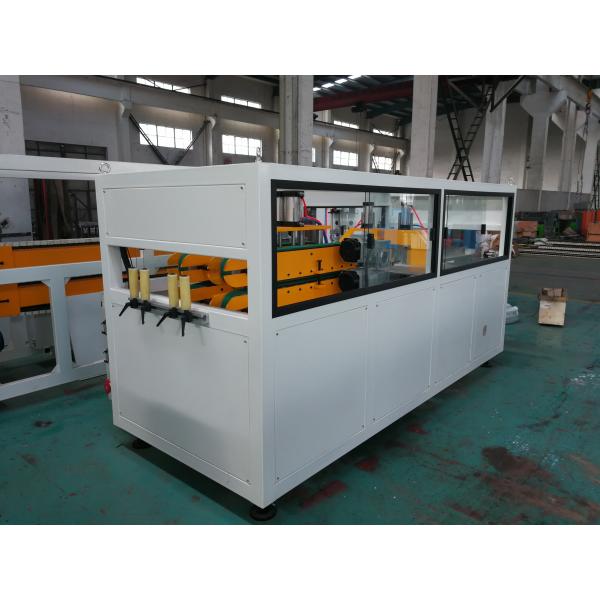

Haul-off Machines: Available in 2, 3, 4, 6, or 8 claw configurations with inverter-controlled speed

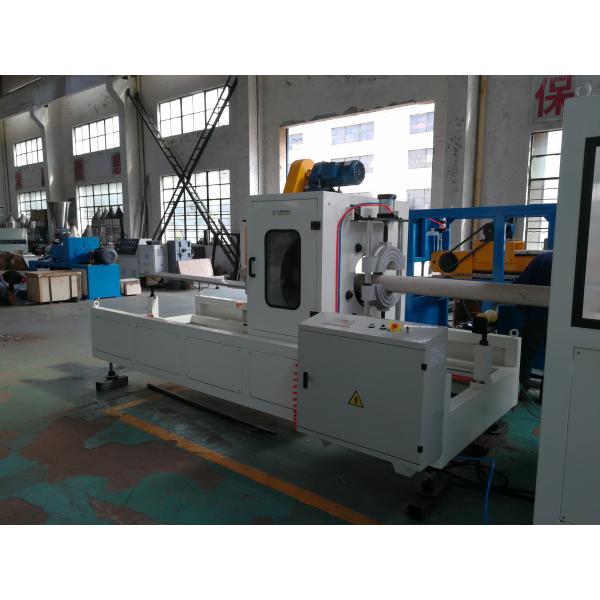

Cutting Unit: Saw cutting or planetary saw cutting options with integrated dust collection system
Stacking Unit: Automatic overturning system with adjustable pipe length settings
Control System: Manual control cabinet or PLC touch screen control options

PVC Pipe Extrusion Line Technical Details

Technical Specifications

Model	SJZ-51	SJZ-55	SJZ-65	SJZ-80	SJZ-92
Screw Dia. (mm)	51/105	55/110	65/132	80/156	92/188
Max. Rotating Speed (rpm)	40	38	38	37	36
Main Motor (kw)	18.5	22	37	55	90
Capacity (kg/h)	80~100	100~150	150~250	250~380	380~700
Center Height (mm)	1050	1050	1050	1050	1100
Net Weight (kg)	3000	3500	4000	5500	8000
LWH	3.61.12.1	3.61.11.2	4.21.52.4	4.71.52.4	61.62.5
