| Categories | LED Curtain Display |
|---|---|
| Brand Name: | BAKOVISION |
| Model Number: | P(16/16) |
| Certification: | CE/LCC/RoHS |
| Place of Origin: | CHINA |
| MOQ: | 1 square meter |
| Price: | Negotiable Price |
| Payment Terms: | L/C, T/T, Western Union,Visa, MoneyGram, D/P, D/A,e-checking |
| Supply Ability: | 6500㎡/Month |
| Delivery Time: | 20-25days |
| Packaging Details: | Wooden Case or Flight Case |
| Pixel Pitch: | 16.67/16.67mm |
| Pixel Density: | 6,500 pixels/m² |
| Max.Power consumption: | ≤470W/m² |
| Brightness: | 6500cd/m² |
| Cabinet size(H×W×L)mm: | 1000×500×60 |
| Ingress Protection (Front/Rear): | IP65 |
| Resolution: | 60×30(H×W) |
| Company Info. |
| Shenzhen Bako Vision Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

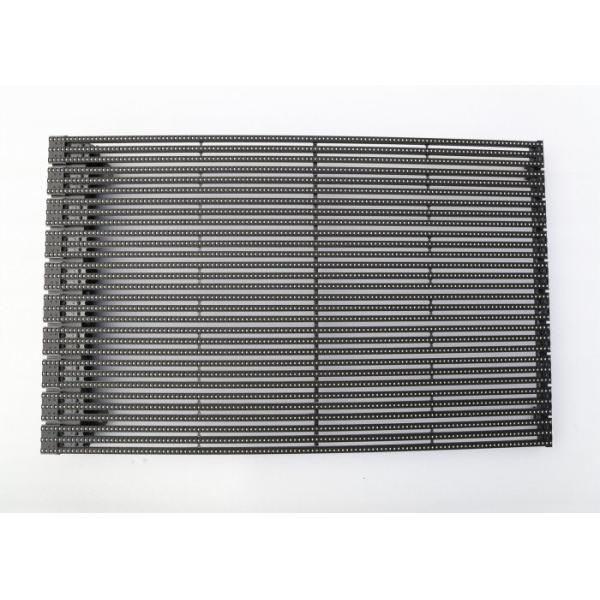

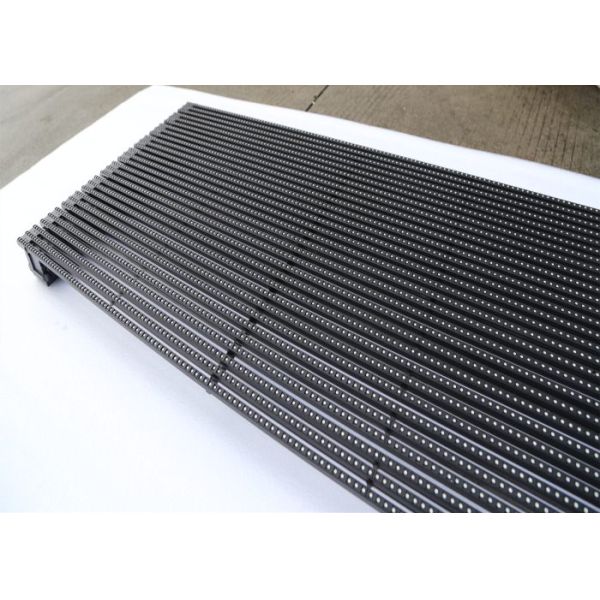

P16 BAKOVISION LED Curtain Display,SMD3535 High Brightness Outdoor MESH LED
Description
| MODEL | 16/16mm |
| LED Type | SMD(3535) |
| Pixel configuration | |
| Pixel pitch(H×W) mm | 16.67/16.67 |
| Module size(H×W×L) mm | 1000×9.5×11 |
| Resolution | 60×30(H×W) |
| Cabinet size(H×W×L)mm | 1000×500×60 |
| Net.weight/Cabinet | 7.8kg |
| Ingress Protection (Front/Rear) | IP65 |
| Power | AC 240 or 110±10%,50~60Hz |
| Serviceability | Front&Rear service |
| Max.Power consumption | ≤470W/m² |
| Avg.Power consumption | 157W/m² |
| Brightness | 6500cd/m² |
| Pixel density(pixel/m²) | 3,600 |
| Viewing Angle(H/V) | 120°/120° |
| Contrast ratio | 3,000:1 |
| Transparency | 43% |
| Operation temperature/humidity | -30°C to +50°C/10% to 95% |
| Lifetime(50%brightness) | 80,000hours |
| Gray scale | 14 bit |
| Refresh rate | ≥1920Hz |
| Frame rate | 30/50/60fps |
F&Q
Q: How can I get free samples?
When you confirm what color and dimension do you need, we will
provide you free samples in 3-5 days. However, you need to bear
freight cost.
Q: Can you make customized led display?
Yes, we have advantages in customized led display because we have
R&D center with professional technical team, and we have more
than ten years experience in this field.
Q: Do you accept small orders?
Yes, we would like to support you and hope we can grow up together.
Q:What's the warranty of your LED Display Board?
We offer 2 years warranty for our different led display screen
series, 100,000 hours life span for the led lamps, and lifetime
technology support with 7/24 phone answering service if you have
any problem with our led screen.
Q:Whats your payment term? How long it takes to delivery?
We normally accept T/T and L/C, and other payment options is
negotiable for your convenience. A 30% deposit is needed in
advance, and the rest 70% be paid before delivery. Our average lead
time is 20-25 working days.
Q:Can I visit our factory in China?
Our factory is open to our customers, very welcome to visit us. The
person who is responsible will guide you to scan the workshop every
step, you will know the rough producing situation, then you will be
trustful to us. Business is long time cooperation, trust is the
most important between each other. We can not only do business
together, but also can be good friends.
