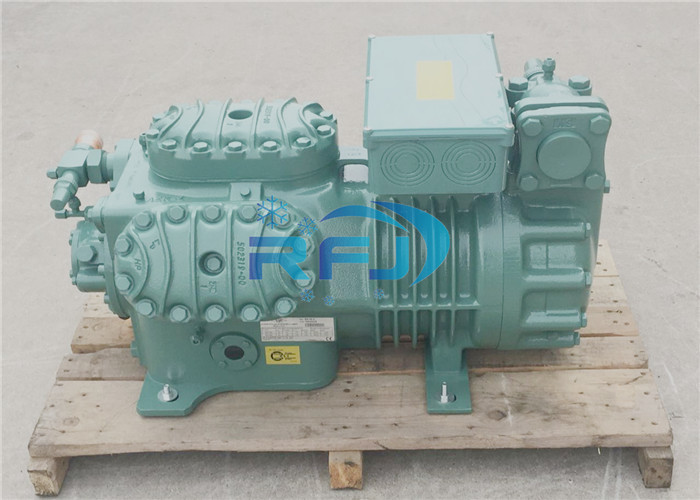

4FE-25Y-40P Refrigeration Compressor 25HP AC Power Source High Efficiency Profile

Categories	Semi Hermetic Refrigeration Compressor
Model Number:	4FE-25Y-40P
Certification:	CE 3C
Place of Origin:	CHINA
MOQ:	1
Price:	discussed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000
Delivery Time:	1-7DAYS
Packaging Details:	wooden packaging
Weight(kg)::	196
Power Source::	AC Power
Original::	Germany,China
Refrigerant::	R134A,R404A,R407A,R407F
Place of Origin::	Germany
TYPE::	Semi-hermetic piston compressors
Power::	25HP

Contact Now

Add to Cart

Company Info.

Shenzhen Ruifujie Technology Co., Ltd.

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Compressor Advantages

Energy Efficient: High-efficiency profile, infinite or closely stepped capacity control, optimum economiser operation
Universal: Compatible with R134a, R407C and R22 (R404A, R507A upon request), available with and without economiser (ECO)
Flexible: Dual capacity control, changeable between 4-stage and infinite capacity control without retrofitting, suction and discharge gas connections can be rotated in 90° increments

Key Features

New Valve Plate Design: New geometric concept for pressure valves for low rear expansion, high cooling capacity with minimal energy requirements, ECOLINE cylinder head system for flexible tandem operation
Motor: Efficient under full- and part-load thanks to broadband characteristics, universal refrigeration compressor with motor version 2 for medium and low temperature applications, motor versions 1 and 3 for special applications
Capacity Control: CRII system - intermittent blocked suction (4-cylinder compressor with CRII on both heads provides range of control from 100% to ~10%), ECOLINE VARISPEED - built-in frequency inverter
Downward Compatible: Essential internal components completely redesigned, outer contour as standard ensuring every ECOLINE is downward compatible
Drive Gear: New piston and connecting rod design

Technical Specifications

Model	Stage	Displacement (m³/h)	Cylinders	Bore (cm)	Stroke (mm)	Speed (rps)	Suction Connection	Discharge Connection	Oil Connection
4FE-28(Y)	2	101.8	4	4.5	207	28	1 1/8	54	2 1/8
4FE-35(Y)	1	101.8	4	4.5	207	28	1 1/8	54	2 1/8
6JE-22Y	3	95.3	6	4.75	213	35	1 3/8	54	2 1/8
6JE-25(Y)	2	228
6JE-33(Y)	1	231
6HE-25Y	3	110.5	6	4.75	224	35	1 3/8	54	2 1/8
6HE-28(Y)	2	228
6HE-35(Y)	1	235
6GE-30Y	3	126.8	6	4.75	228	35	1 3/8	54	2 1/8
6GE-34(Y)	2	228
6GE-40(Y)	1	238
6FE-40Y	3	151.6	6	4.75	238	42	1 5/8	54	2 1/8
6FE-44(Y)	2	241
6FE-50(Y)	1	241
8GE-50(Y)	2	185	8	5	342	42	1 5/8	76	3 1/8
8GE-60(Y)	1	350
8FE-60(Y)	2	221	8	5	361	54	2 1/8	76	3 1/8
8FE-70(Y)	1	374
